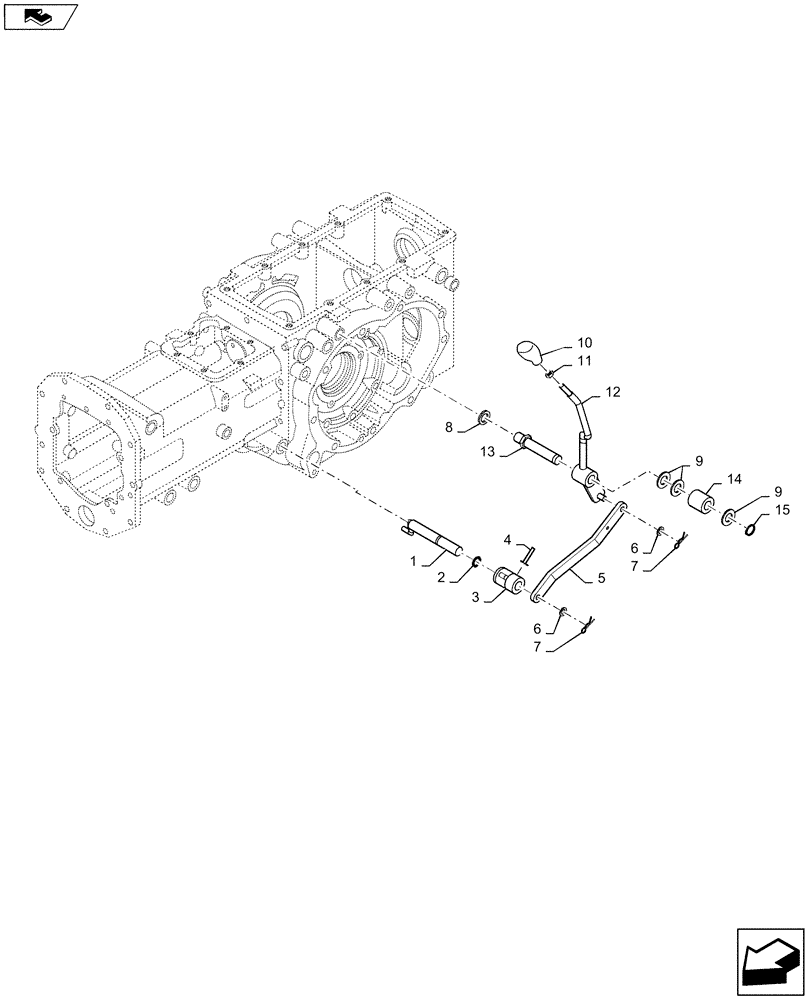

Запчасти Case IH FARMALL 35A (31.101.AC[02]) - SHIFT LEVER & FORK - M/PTO - 4WD (31) - IMPLEMENT POWER TAKE OFF

1

MT40012236

LEVER

1шт.

2

MT40029204

O-RING,2.4mm Thk x 15.8mm OD

D15.8 x W2.4

1шт.

3

MT40012481

ARM

1шт.

4

MT40270938

PIN,M6 x 35mm

6 x 35L

1шт.

5

MT40228999

LINK,26mm x 6mm Thk

25 x 6T

1шт.

6

MT40028158

WASHER,10.50mm ID x 18mm OD x 2mm Thk

O.D. 18 x I.D. 10.5 x 2T

2шт.

7

MT40029132

HAIR PIN COTTER,M10

D10 x 0L

2шт.

8

MT40029555

WASHER,16.20mm ID x 28mm OD x 4mm Thk

O.D. 28 x I.D. 16.2 x 4T

1шт.

9

MT40028181

WASHER,21mm ID x 37mm OD x 3mm

O.D. 37 x I.D. 21 x 3T

3шт.

10

MT40261957

KNOB

4WD

1шт.

11

MT40029047

NUT,Hex, M10 x 1.25

M10 x P1.25

1шт.

12

MT40229000

LEVER

1шт.

13

MT40009903

SHAFT

H24

1шт.

14

MT40010022

SPACER,20mm ID x 35mm OD x 39L

O.D. 35 x I.D. 20 x 39L

1шт.

15

MT40029265

SNAP RING,M20

D20

1шт.
