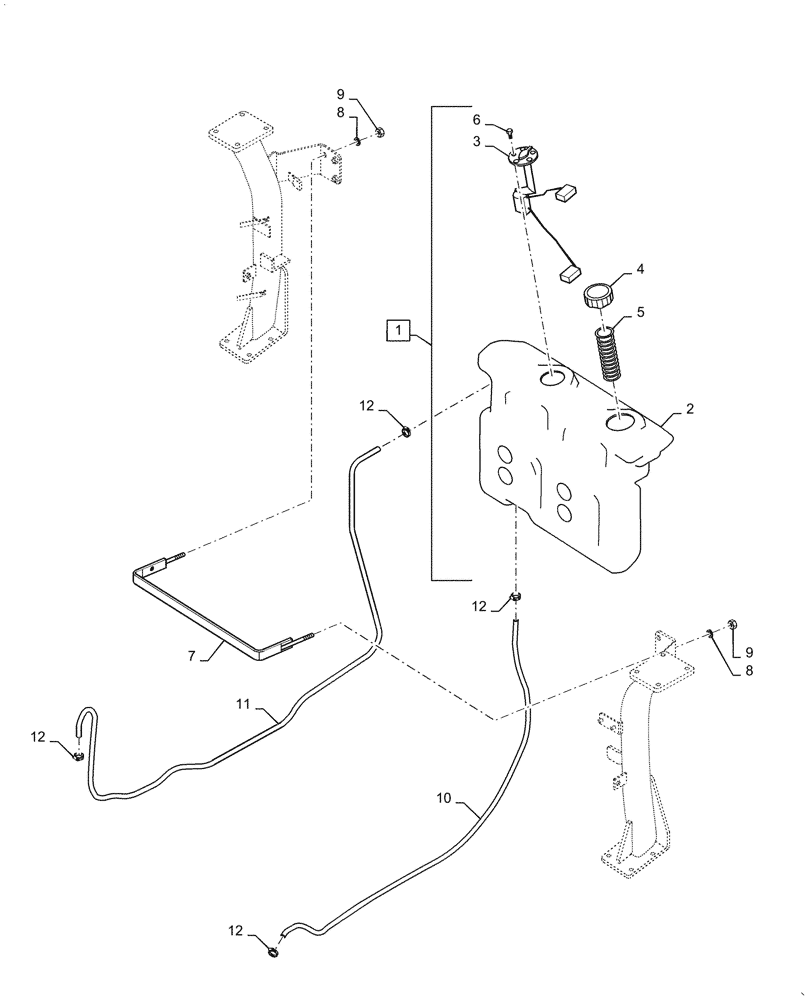

Запчасти Case IH FARMALL 35A (10.216.AI[01]) - FUEL TANK (10) - ENGINE

1

MT40229423

FUEL TANK

Assy, Incl 2 - 6, Serial Range: -2271001632

1шт.

1

MT40339977

FUEL TANK

Assy, Incl 2 - 6, Start Serial: 2271001633

1шт.

2

MT40008216

FUEL TANK

Main, Serial Range: -2271001632

1шт.

2

MT40339976

FUEL TANK

Main, Start Serial: 2271001633

1шт.

3

MT40181437

FUEL GAUGE

1шт.

4

MT40297241

CAP

Fuel, Serial Range: -2271001632

1шт.

4

MT40277904

CAP

Fuel, Start Serial: 2271001633

1шт.

5

MT40008416

FILTER STRAINER

Assy, Fuel

1шт.

6

MT40028908

BOLT,Hex, M5 x 0.8 x 16mm

5шт.

7

MT40229426

BAND

Fuel Tank

1шт.

8

MT40028194

WASHER,8.4mm ID x 20mm OD x 1.6mm Thk

2шт.

9

MT40027836

NUT

Lock

2шт.

10

MT40309927

HOSE

Fuel Suction

1шт.

11

MT40309928

HOSE

Fuel Return

1шт.

12

MT40012020

HOSE CLAMP,8mm -16mm

4шт.
