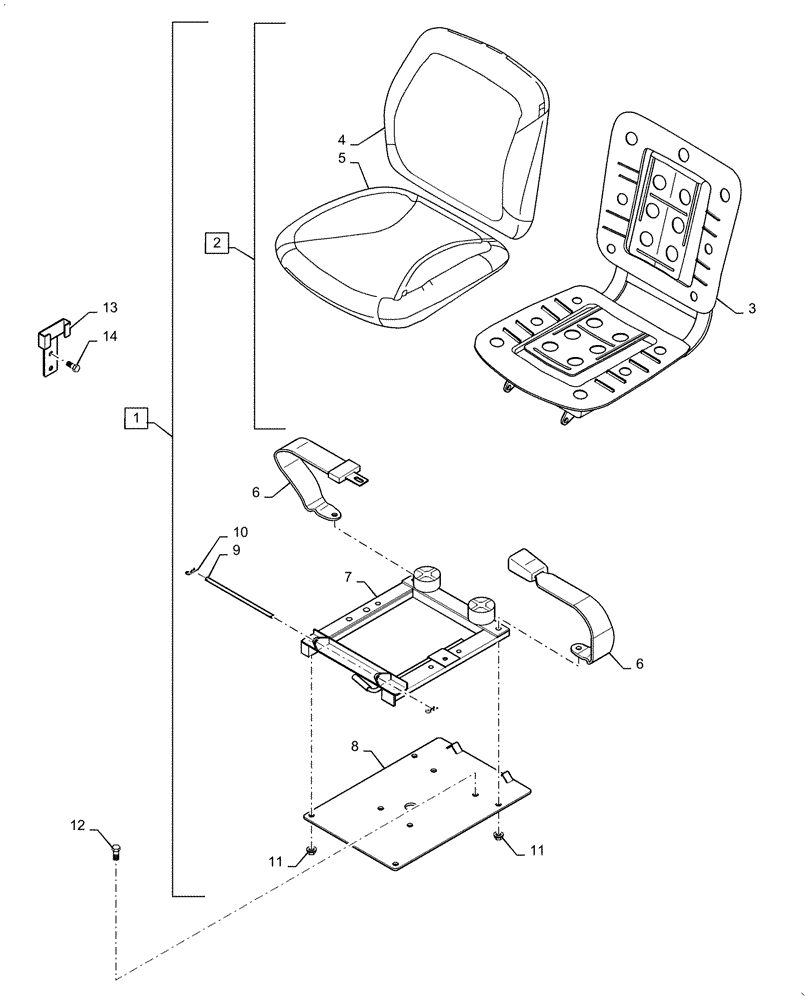

Запчасти Case IH FARMALL 35A (90.120.AD[01]) - SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

MT40313604

DRIVER SEAT

Incl 2 - 11

1шт.

2

MT40282387

SEAT CUSHION

Incl 3 - 5

1шт.

3

MT40276793

DRIVER SEAT

Frame

1шт.

4

MT40278540

SEAT BACK

Back

1шт.

5

MT40278537

SEAT CUSHION

Wheat

1шт.

6

MT40266835

SEAT BELT

Assy

1шт.

7

MT40262809

DAMPER

Assy

1шт.

8

MT40275578

BASE PLATE

Lower Seat

1шт.

9

MT40268027

SHAFT

Seat

1шт.

10

MT40029131

PIN,M8

Snap

2шт.

11

MT40029075

FLANGE NUT,Hex, M8 x 1.25

4шт.

12

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

4шт.

13

MT40276588

SEAT BELT

Rest

1шт.

14

MT40028919

BOLT,Hex, M8 x 1.25 x 16mm, W/ Wshr

2шт.

15

MT40341305

SWITCH

Safety

1шт.
