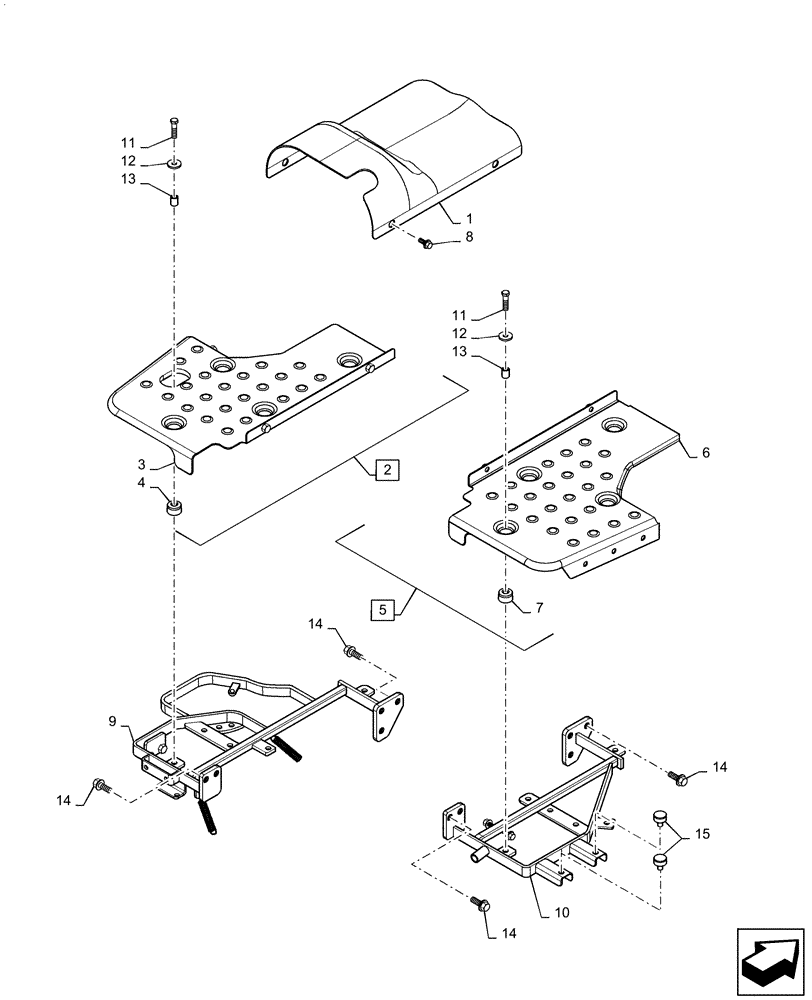

Запчасти Case IH FARMALL 35A (90.118.AX[03]) - STEP AND MOUNT, RUBBER, MECHANICAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

MT40309516

COVER

Case

1шт.

2

MT40309519

STEP

Incl 3 - 4, RH Assy

1шт.

3

MT40309520

STEP

RH

1шт.

4

MT40007406

MOUNT,14mm ID x 20mm OD x 2mm Thk

RH

4шт.

5

MT40309517

STEP

Incl 6 - 7, LH Assy

1шт.

6

MT40309518

STEP

LH

1шт.

7

MT40007406

MOUNT,14mm ID x 20mm OD x 2mm Thk

LH

4шт.

8

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

9

MT40309838

FRAME

RH

1шт.

10

MT40252199

FRAME

LH

1шт.

11

MT40028926

BOLT,Hex, M8 x 1.25 x 40mm, W/ Wshr

8шт.

12

MT40086707

WASHER,8.4mm OD x 2.5mm Thk

8шт.

13

MT40009979

SPACER,9.2mm ID x 13.8mm OD x 18mm L

13.8mm OD x 9.2mm ID

8шт.

14

MT40028938

BOLT,Hex, M12 x 1.75 x 30mm

8шт.

15

MT40007478

RUBBER SLEEVE,M8 x 1.25 x 20mm L

M8 x 1.25

2шт.
