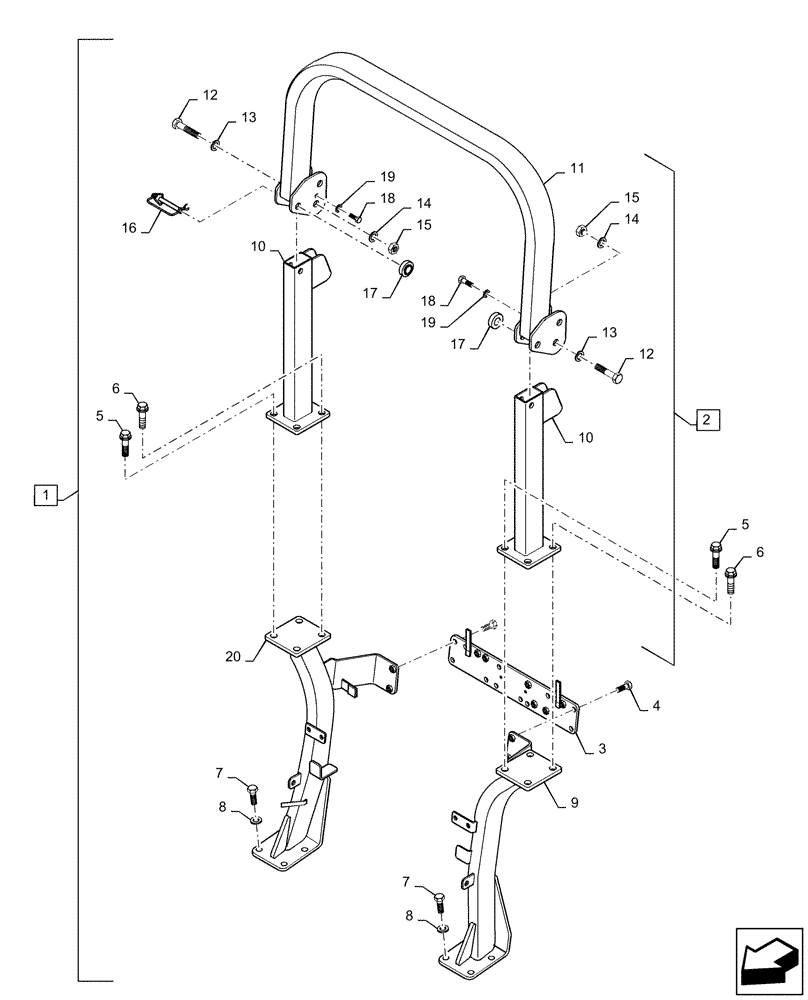

Запчасти Case IH FARMALL 35A (90.114.AQ[01]) - ROPS - FOLDABLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

MT20122412

ROPS

Entire Assy, Incl 2 - 20

1шт.

2

MT20122240

ROPS

Foldable Assy Incl 10 - 19

1шт.

3

MT40241242

FRAME

Rops, Rear

1шт.

4

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

4шт.

5

MT40028983

BOLT,Hex, M12 x 1.75 x 45mm

Hex

4шт.

6

MT40094530

BOLT,Hex, M12 x 1.75 x 65mm

Hex

4шт.

7

MT40029397

BOLT,Hex, M14 x 2 x 40mm

8шт.

8

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

8шт.

9

MT40229444

FRAME

LH

1шт.

10

MT40247166

FRAME

Rops

1шт.

11

MT40011418

FRAME

Upper

1шт.

12

MT40029406

BOLT,M14 x 2 x 80mm L

2шт.

13

MT40028160

WASHER,15mm ID x 24mm OD x 2.5mm Thk

Plain

2шт.

14

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

2шт.

15

MT40028727

NUT,Hex, M14 x 2

2шт.

16

MT40233112

PIN,14mm ID x 80mm L

2шт.

17

MT40027824

GROMMET,24.5mm OD x 14mm ID x 13mm Thk

Lower

2шт.

18

MT40029491

BOLT,Hex, M6 x 1.0 x 20mm

M6 x 1 x 20mm

2шт.

19

MT40028719

NUT,Hex, M6 x 1.0

M6

2шт.

20

MT40229440

FRAME

RH

1шт.
