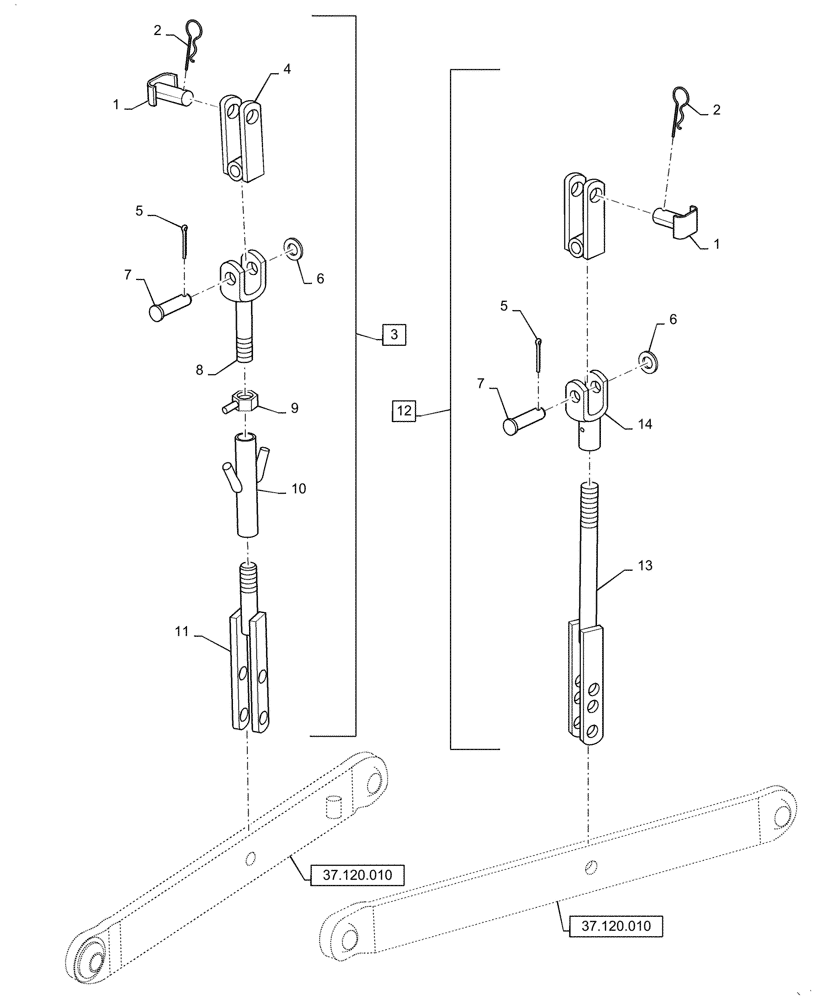

Запчасти Case IH FARMALL 35A (37.120.AV[01]) - LIFTING ROD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

MT40012364

PIN,19mm OD x 58mm L

Upper Lift Rod

2шт.

2

MT40011979

PIN,20mm OD x 80mm L

Snap

2шт.

3

MT40008163

LIFTING ROD

RH Assy. Incl 1 - 2, 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

Incl in 3, 12

1шт.

5

MT40029128

PIN,M40 x 40mm L

Split

1шт.

6

MT40028178

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.

7

MT40009469

PIN,16mm W x 60mm L

Lift Rod

1шт.

8

MT40012451

LIFTING ROD

Upper, RH

1шт.

9

MT40012003

NUT,M20 x2.5

1шт.

10

MT40012198

BUCKLE

Turn

1шт.

11

MT40012452

LIFTING ROD

Lower Lift, RH

1шт.

12

MT40008162

LIFTING ROD

LH Assy. Incl 1 - 2, 4 - 7, 13 - 14

1шт.

13

MT40012450

LIFTING ROD

Lower Lift, LH

1шт.

14

MT40012449

LIFTING ROD

Lift, LH

1шт.
