(90.120.010) - SEAT

Запчасти Case IH FARMALL 35A (90.120.010) - SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

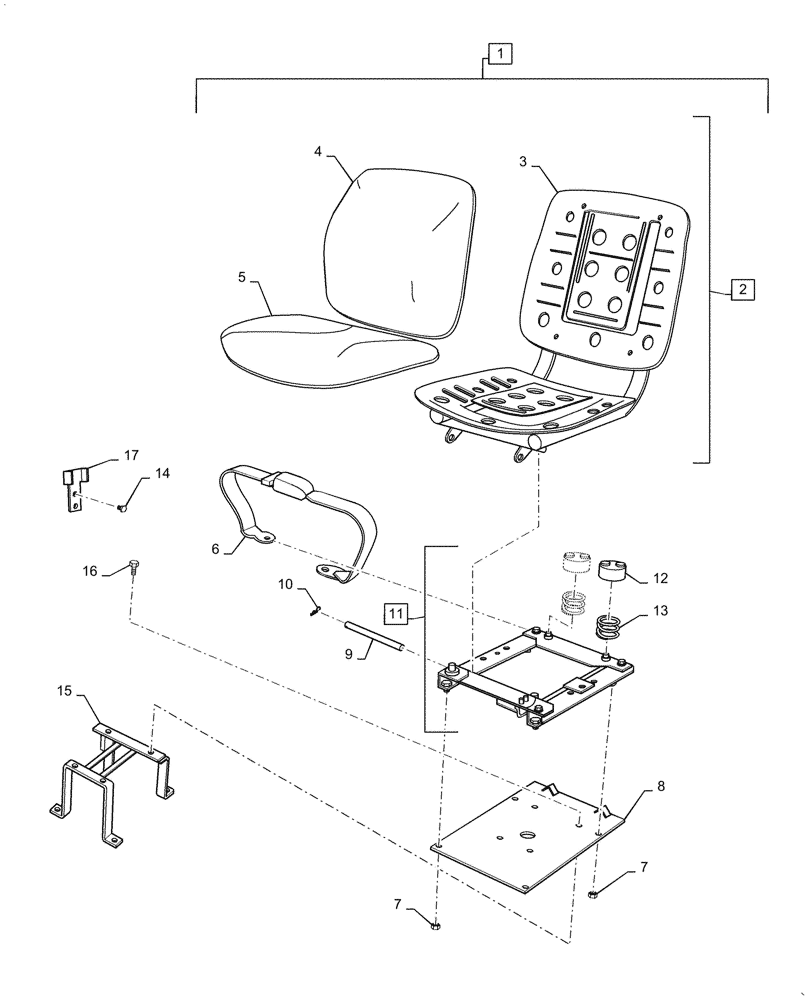

Схема запчастей Case IH FARMALL 35A - (90.120.010) - SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
14
8
7
5
3
2
6
10
11
9
4
7
1
15
13
16
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40313604

DRIVER SEAT

Incl 2 - 1, Wheat

1шт.

2

MT40282387

SEAT CUSHION

Incl 3 - 5, Wheat

1шт.

3

MT40276793

DRIVER SEAT

Frame

1шт.

4

MT40278540

SEAT BACK

Back, Wheat

1шт.

5

MT40278537

SEAT CUSHION

Wheat

1шт.

6

MT40266835

SEAT BELT

1шт.

7

MT40029075

FLANGE NUT,Hex, M8 x 1.25

4шт.

8

MT40275578

BASE PLATE

1шт.

9

MT40268027

SHAFT

1шт.

10

MT40029131

PIN,M8

2шт.

11

MT40352267

DAMPER

Incl 12, 13

1шт.

12

MT40349505

DAMPER

2шт.

13

MT40350825

SPRING

2шт.

14

MT40028919

BOLT,Hex, M8 x 1.25 x 16mm, W/ Wshr

2шт.

15

MT40340688

BRACKET

1шт.

16

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

4шт.

17

MT40276588

SEAT BELT

Rest

1шт.
