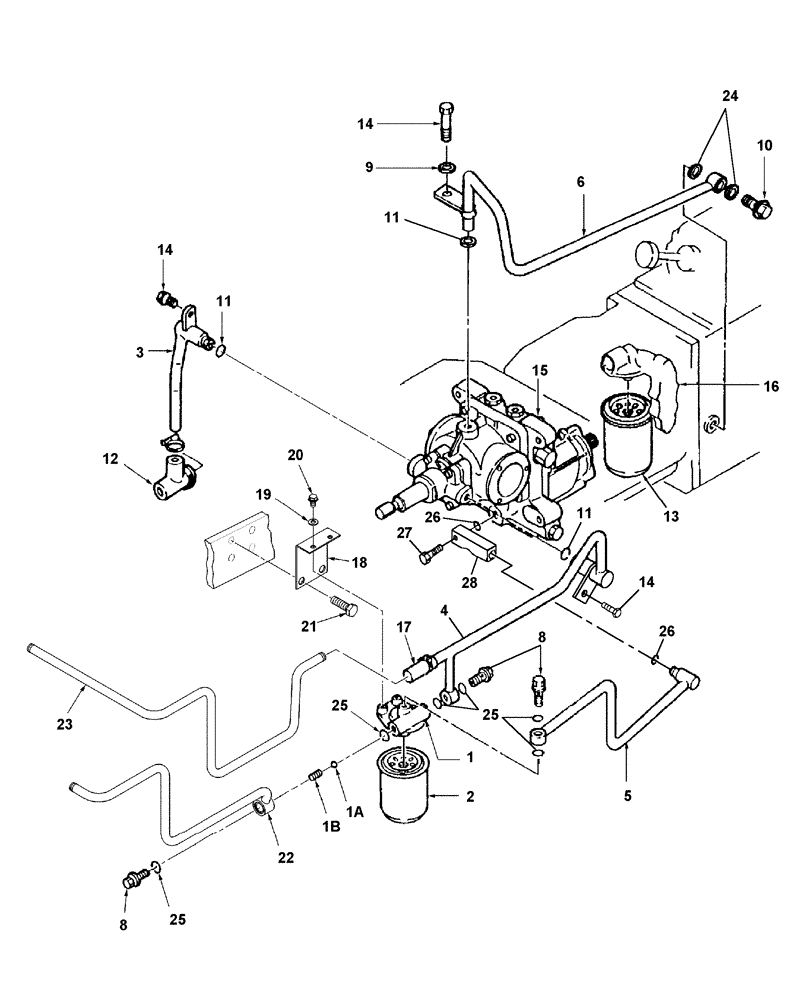

Запчасти Case IH FARMALL 35 (07.07) - HYDRAULIC PIPING W/HST (07) - HYDRAULIC SYSTEM

1

SBA340560440

FILTER HEAD

When ordering, also order Ref. 1A & 1B

1шт.

1a

SBA048100016

BALL

1шт.

1b

SBA398213390

SPRING

1шт.

2

SBA340501030

FILTER

HST, W/Internal Bypass

1шт.

3

SBA340708990

HYD TUBE

1шт.

4

SBA340550250

HYD TUBE

1шт.

5

SBA340550260

HYD TUBE

1шт.

6

SBA340708960

HYD TUBE

1шт.

7

SBA398750260

HOSE CLAMP

1шт.

8

SBA398480240

BANJO BOLT,3/8"

PF

3шт.

9

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

10

SBA398480250

BANJO BOLT,1/2"

1шт.

11

SBA052100160

O-RING

P16

2шт.

12

SBA398115670

HOSE

Rubber

1шт.

13

84475483

HYDRAULIC OIL FILTER

Hydrostatic Transmission (HST) Filter

1шт.

14

SBA340500980

HYDRAULIC OIL FILTER

HYDROSTATIC TRANSMISSION (HST) FILTER, COLD WEATHER RATED. USE TO REPLACE SBA340501030 IF EXPERIENCE SEAL LEAKAGE.

1шт.

15

SBA011510816

BOLT

M8 x 16

8шт.

16

SBA322800220

TRANSMISSION, HYDROS

Pump

1шт.

19

SBA322800220C

CORE-TRANSMISSION

Return Number, Hydrostatic Transmission

1шт.

17

SBA322800221R

REMAN-TRANSMISSION

Remanufactured Hydrostatic Transmission

1шт.

18

SBA322800221C

CORE-TRANSMISSION

Return Number, Hydrostatic Transmission

1шт.

20

SBA340750260

BODY

Oil Filter

1шт.

21

86530711

HYDRAULIC HOSE,15.88 mm ID x 70.00 mm, SAE 30R2 Type 1

Cooler, HST

1шт.

22

86402606

BRACKET

HST Filter

1шт.

23

492-11031

LOCK WASHER,5/16"

2шт.

24

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

25

86526913

BOLT,Hex, M14 x 45.5mm, Cl 10.9

2шт.

26

86524957

TUBE,469, 245.8 mm L

HST Cooler

1шт.

27

86522970

TUBE,15.90 mm ID x 17.00 mm OD

HST Cooler

1шт.

28

SBA052300250

O-RING

2шт.

29

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

9шт.

30

SBA052100140

O-RING

1шт.

31

SBA011310640

CAPTIVE WASHER SCREW,Hex, M6 x 40, Cl 8.8

2шт.

32

SBA340673860

HYD CONNECTOR

1шт.
