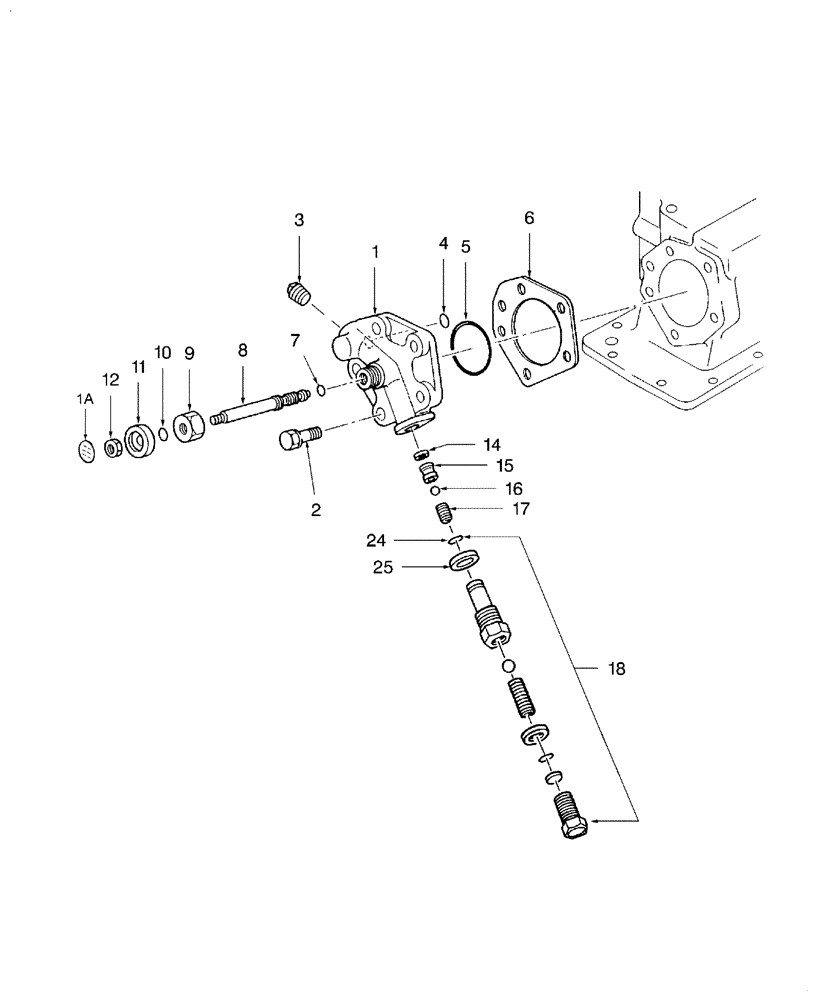

Запчасти Case IH FARMALL 35 (07.02) - LIFT COVER CYLINDER HEAD (07) - HYDRAULIC SYSTEM

1

SBA344711250

CYLINDER HEAD

w /Live Rear PTO

1шт.

1a

SBA390370290

DECAL

Flow Control

1шт.

2

SBA011511240

BOLT,M12 x 40

5шт.

3

SBA064500030

PLUG,3/8"

PT

1шт.

4

SBA052110120

O-RING

1шт.

5

SBA052310650

O-RING

1шт.

6

SBA344990230

GASKET

1шт.

7

SBA052110070

O-RING

1шт.

8

SBA340170800

HYDRAULIC VALVE

1шт.

9

SBA340190340

GUIDE

1шт.

10

SBA052100120

O-RING

P12

1шт.

11

SBA398180332

HANDLE GRIP

1шт.

12

100016

NUT,M10 x 1.5, Cl 8

1шт.

14

SBA340990150

GASKET

1шт.

15

SBA340190130

GUIDE

1шт.

16

V34014

BALL

Steel, M8 - 11/32"

1шт.

17

SBA398211860

SPRING

1шт.

18

SBA340016560

HYDRAULIC VALVE

Assy, Includes: Ref. 24 & 25

1шт.

24

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

P11

2шт.

25

SBA398112140

SEAL

Rubber

1шт.
