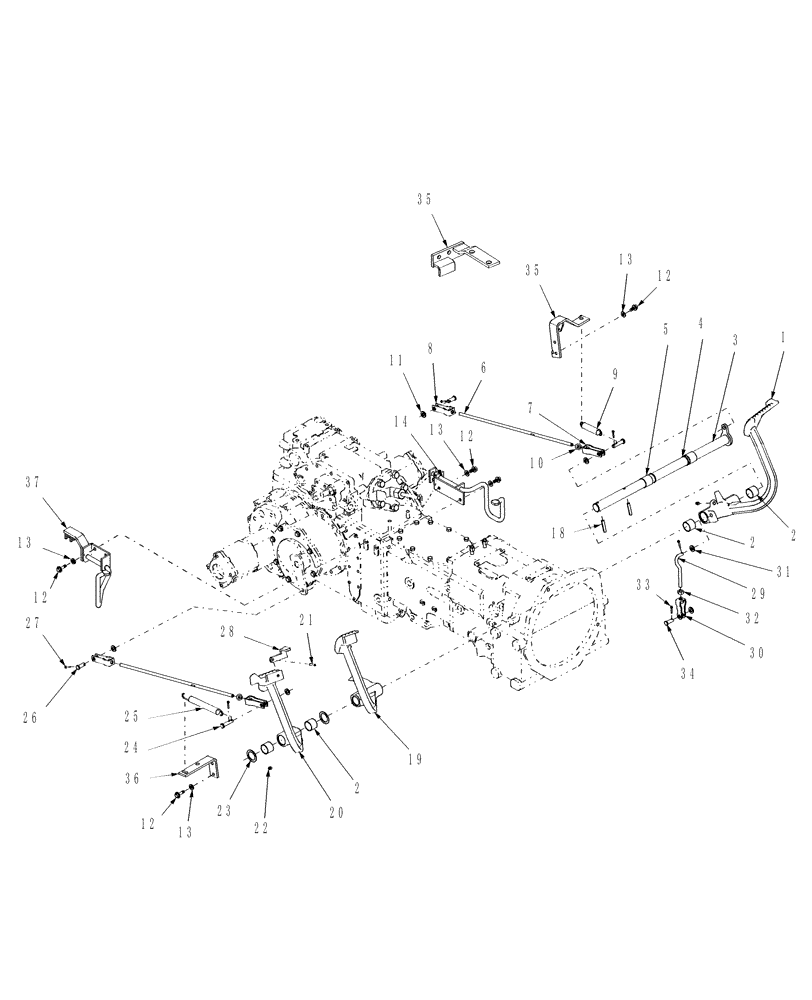

Запчасти Case IH FARMALL 35 (03.20) - PEDALS & BRAKE LOCK (HST & 9 X 3) (03) - TRANSMISSION

1

86540869

PEDAL

Pedal, Clutch Includes: SBA060610000 Grease Fitting

1шт.

2

86535945

BUSHING

Bushing, Clutch

4шт.

3

86402086

SHAFT

Shaft, Cross

1шт.

4

86530988

O-RING,28.08mm ID x 2mm Width

2шт.

5

86535944

BUSHING

Bushing, Pedal Shaft

2шт.

6

86530748

ADJUSTMENT ROD,M10 x 530

Brake

2шт.

7

86530749

CLEVIS

Clevis Assy., R.H.

2шт.

8

86530750

CLEVIS

Clevis Assy., L.H.

2шт.

9

86530740

SPRING

Spring Pedal

2шт.

10

100016

NUT,M10 x 1.5, Cl 8

3шт.

11

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

6шт.

12

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

13

492-11031

LOCK WASHER,5/16"

6шт.

14

86402597

DIFF. LOCK ASSY

L.H., HST

1шт.

17

353308

NUT,M6 x 1.0, Cl 8

1шт.

18

86977791

LOCK PIN,M8 x 45, Slotted

2шт.

19

86402091

PEDAL

Brake, L.H.

1шт.

20

86549916

PEDAL

Brake, R.H.

1шт.

Use Grease Zerk SBA060610000

1шт.

21

86555830

ROLL PIN

1шт.

22

SBA060610000

LUBE NIPPLE,M6 x .075

3шт.

23

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

2шт.

24

86530738

CLEVIS PIN,10mm OD x 46mm L

Brake

2шт.

25

86543804

SPRING

Right Brake

1шт.

26

86530992

CLEVIS PIN,10mm OD x 29.1mm L

3шт.

27

80756

COTTER PIN,1/8" x 3/4"

7шт.

28

86556100

LATCH

Brake Lock

1шт.

29

86530918

ROD

Double Clutch, 9 x 3

1шт.

29

86526805

ROD

Clutch, HST

1шт.

30

86530920

CLEVIS,M10 x 1.5

Clutch

1шт.

31

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

32

100016

NUT,M10 x 1.5, Cl 8

1шт.

33

80756

COTTER PIN,1/8" x 3/4"

2шт.

34

510390

CLEVIS PIN,8.33mm OD x 30.66mm L

2шт.

35

86402767

BRACKET

Spring, 9 x 3

1шт.

35

86402607

BRACKET

Left Brake, HST

1шт.

36

86530821

BRACKET

Brake Spring, 9x3

1шт.

37

86402598

DIFF. LOCK ASSY

R.H., 9 x 3

1шт.
