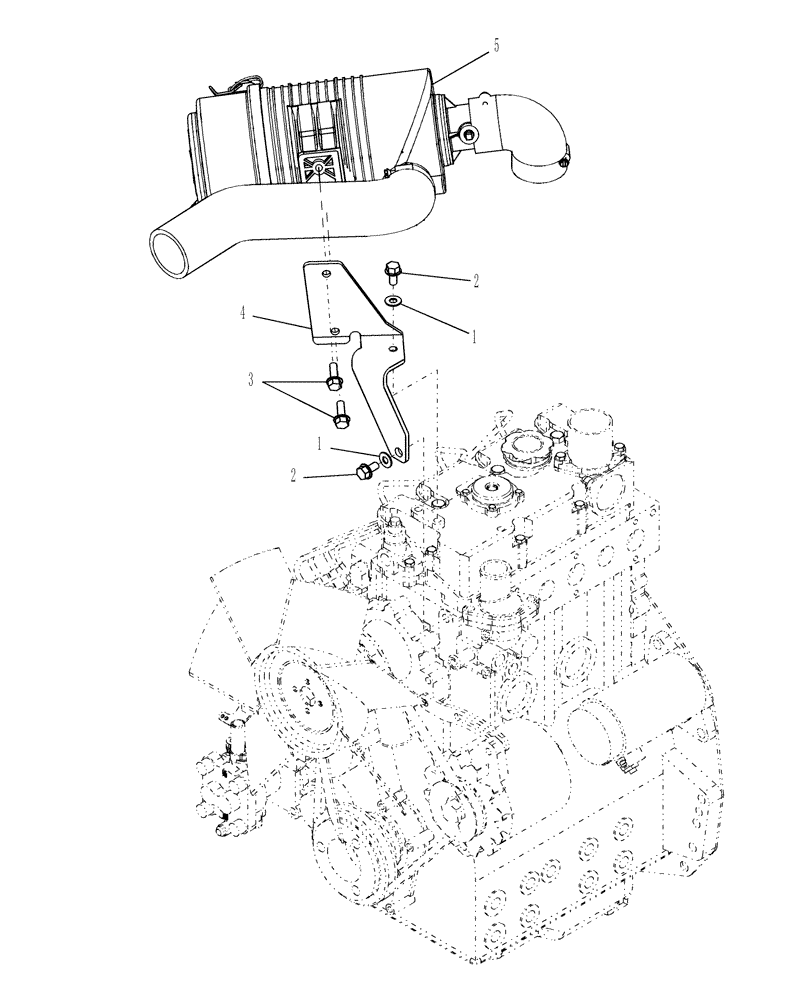

Запчасти Case IH FARMALL 35 (02.05) - AIR CLEANER (02) - ENGINE EQUIPMENT

1

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

2

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

3

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

4

87337954

BRACKET

1шт.

5

87337961

AIR CLEANER

Refer to Fig. 02.05.01 for Breakdown

1шт.
