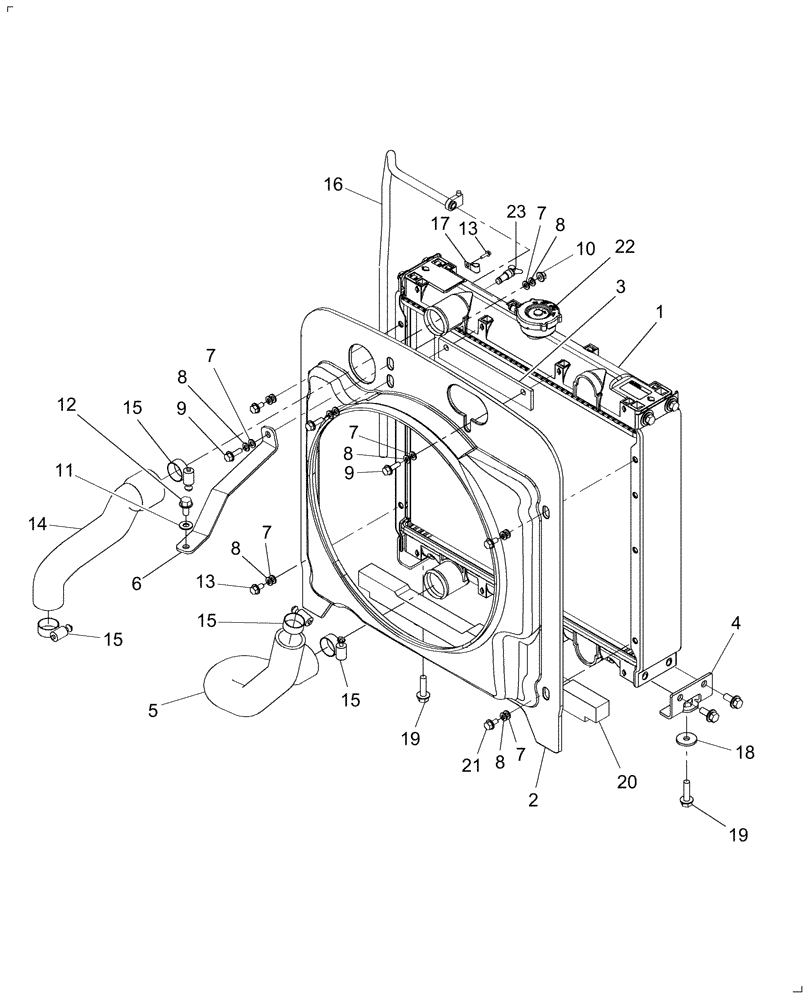

Запчасти Case IH FARMALL 35 (02.01.01) - RADIATOR (02) - ENGINE EQUIPMENT

1

87305451

RADIATOR

Includes: Ref. 22 & 23

1шт.

2

87308777

SHROUD

1шт.

3

87308781

PLATE

Bracket

1шт.

4

87333908

BRACKET

Radiator Support

2шт.

5

87343321

RADIATOR HOSE,33.00 mm ID, 41.00 mm ID x 173.00 mm, SAE J20R4

Lower

1шт.

6

87335708

BRACKET

1шт.

7

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

8

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

8шт.

9

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

10

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

12

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

13

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

1шт.

14

87335707

RADIATOR HOSE,33.00 mm ID, 41.00 mm ID, 219.00 mm

Upper

1шт.

15

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

4шт.

16

87344150

HOSE,7.90 mm ID x 715 mm

Overflow

1шт.

17

134577

CLIP,J

1шт.

18

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

2шт.

19

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

20

87309562

FOAM

Battery Plate

1шт.

21

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

4шт.

22

87522876

RADIATOR CAP

1шт.

23

87032485

DRAINCOCK/TAP SUPPLY

1шт.
