Запчасти Case IH FARMALL 35 (10.04) - DELUXE SEAT (10) - OPERATORS PLATFORM/CAB

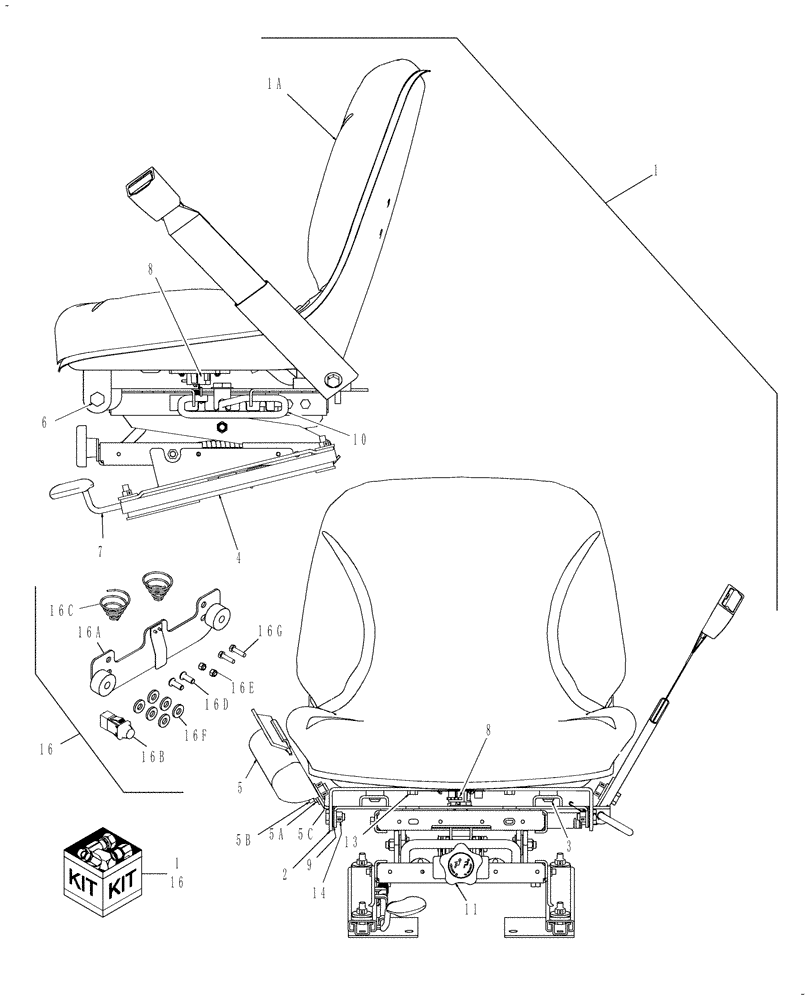

Схема запчастей Case IH FARMALL 35 - (10.04) - DELUXE SEAT (10) - OPERATORS PLATFORM/CAB
8
16
7
16d
2
9
5b
16f
16e
10
5
3
13
6
16
16c
1
16b
4
1a
16g
8
5c
16a
14
5a
1
11

Артикул

Название

Примечание

Количество

1

87385200

SEAT

Seat Assembly, Complete Includes: Ref. 1A-14

1шт.

1a

87385236

SEAT

Includes: Cushion & Metal Seat Pan

1шт.

2

87385280

SEAT PLATE

Plate, Tilt Bracket

1шт.

3

276467

BUMPER

Bumper, Seat Pan

1шт.

4

87385282

SUSPENSION

Suspension Assembly

1шт.

5

86403923

SAFETY BELT ,48.00 mm W

Retractable W/Clip

1шт.

5a

PL

PROCURE LOCALLY

Washer, Flat

4шт.

5b

PL

PROCURE LOCALLY

Bolt, Hex HD 7/16-20

2шт.

5c

PL

PROCURE LOCALLY

Nut, Centerlock 7/16-20

2шт.

6

87385284

SPECIAL BOLT

Bolt, Shoulder 3/8"

2шт.

7

87385283

SLIDE

Kit, Slide

1шт.

8

87385234

SWITCH

Operator's Presence, 4 Pin Twist Lock

1шт.

9

87363666

SPACER

Spacer, Plastic 1.57mm Thick, Pivot Bushing

2шт.

10

87385285

SEAT ACCESSORY

Swivel Assembly

1шт.

11

87385286

KNOB

Knob, Weight Adjustment

1шт.

12

87385287

SERVICE KIT

Swivel Hardware

1шт.

13

PL

PROCURE LOCALLY

Bolt, Hex HD 5/16-18

2шт.

14

PL

PROCURE LOCALLY

Nut, CenterLock 3/8-16

2шт.

15

718852026

ARMREST

KIT, Includes:

1шт.

Not Included with 86403798 Complete Driver Seat

1шт.

(1) ARMREST ASSY, LH

1шт.

(1) ARMREST ASSY, RH

1шт.

(1) ARMREST BRACKET ASSY

1шт.

(1) PLATE, cover, LH

1шт.

(1) PLATE, cover, RH

1шт.

(2) STOP, armrest

1шт.

(4) BOLT, 3/8-16x.75

1шт.

(2) SCREW, #10

1шт.

(4) LOCKWASHER, .375

1шт.

(2) WASHER, wave

1шт.

16

87550442

CONVERSION PACKAGE

Kit, Operator's Switch Conversion Includes: Ref. 16A-16G

1шт.

16a

NSS

NOT SOLD SEPARAT

Spring Leaf

1шт.

16b

NSS

NOT SOLD SEPARAT

Switch, Plunger

1шт.

16c

NSS

NOT SOLD SEPARAT

Spring, Conical

2шт.

16d

NSS

NOT SOLD SEPARAT

Cap Screw, 5/16-18 x .875" Long

2шт.

16e

NSS

NOT SOLD SEPARAT

Locknut, Nylon M6x1

2шт.

16f

NSS

NOT SOLD SEPARAT

Washer, Flat .4016IDx.875ODx.125 THK

6шт.

16g

NSS

NOT SOLD SEPARAT

Bolt, Hex Head M6x1x25

2шт.

17

87576439

KIT

Seat Tilt Spacer

1шт.

Выбрано товаров: 39
