(06.11) - REAR WORKLIGHT - FENDER MOUNTED

Запчасти Case IH FARMALL 31 (06.11) - REAR WORKLIGHT - FENDER MOUNTED (06) - ELECTRICAL SYSTEMS

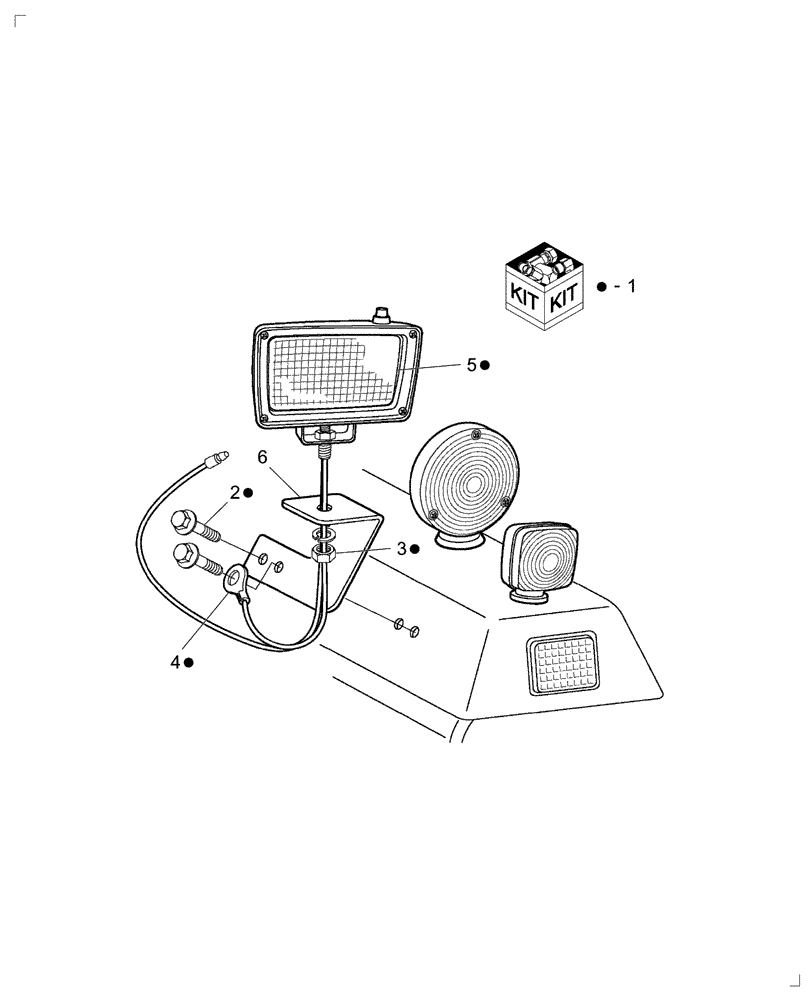

Схема запчастей Case IH FARMALL 31 - (06.11) - REAR WORKLIGHT - FENDER MOUNTED (06) - ELECTRICAL SYSTEMS
5
1
3
4
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SP1229985DS

WORK LAMP

Rear, Includes: (1) Male Bullet, (1) 1/4" Ring Terminal & (1) Female Bullet Includes: Ref. 2-5

1шт.

2

PL

PROCURE LOCALLY

Bolts, Retaining M8x20

2шт.

3

PL

PROCURE LOCALLY

Nuts, M8

2шт.

4

PL

PROCURE LOCALLY

Ring Terminal

1шт.

5

SP4929405DS

SEALED BEAM UNIT

1шт.

6

86531714

SUPPORT

1шт.
