(04.07.01) - POWER STEERING PUMP BREAKDOWN

Запчасти Case IH FARMALL 31 (04.07.01) - POWER STEERING PUMP BREAKDOWN (04) - FRONT AXLE & STEERING

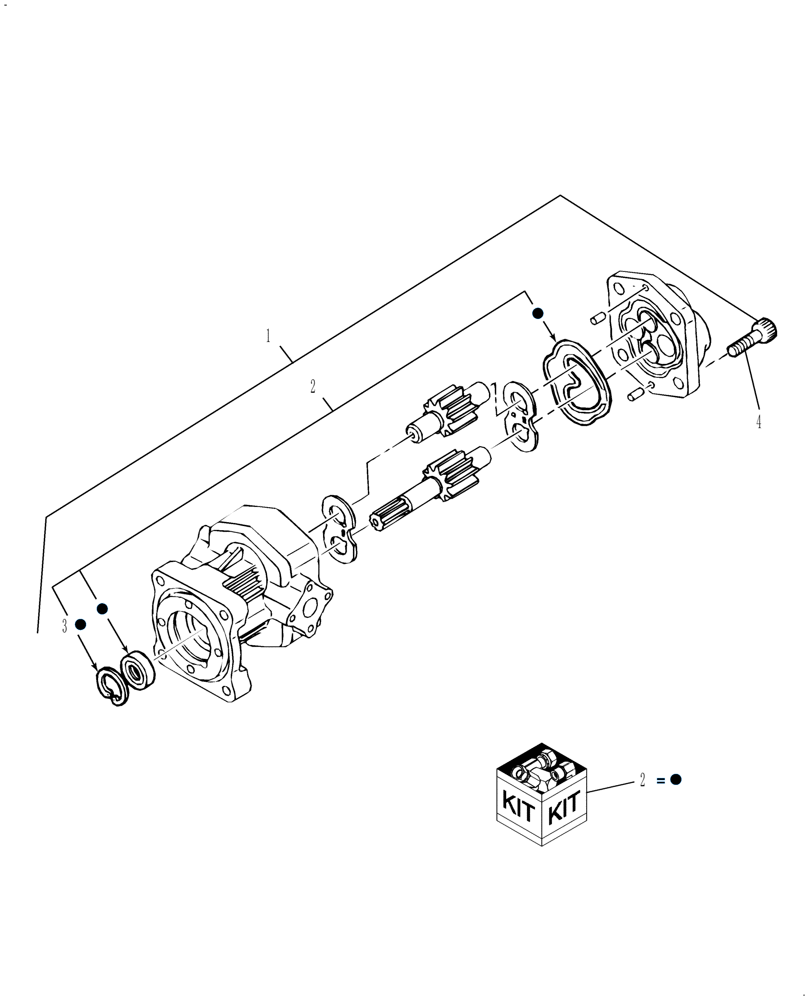

Схема запчастей Case IH FARMALL 31 - (04.07.01) - POWER STEERING PUMP BREAKDOWN (04) - FRONT AXLE & STEERING
2
4
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

SBA340451020

HYDRAULIC PUMP

Power Steering Includes: Ref. 4, 5 & 7

1шт.

SBA340451020R

REMAN-HYD PUMP

FARMALL 31, FARMALL 35 BOTH (1/08-)

1шт.

SBA340451020C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

SBA340490224

SEAL KIT

Power Steering

1шт.

5

301642

SNAP RING,M28, Int

1шт.

7

SBA340490237

BOLT

4шт.
