(04.06) - FINAL REDUCTION GEARS, W/FWD

Запчасти Case IH FARMALL 31 (04.06) - FINAL REDUCTION GEARS, W/FWD (04) - FRONT AXLE & STEERING

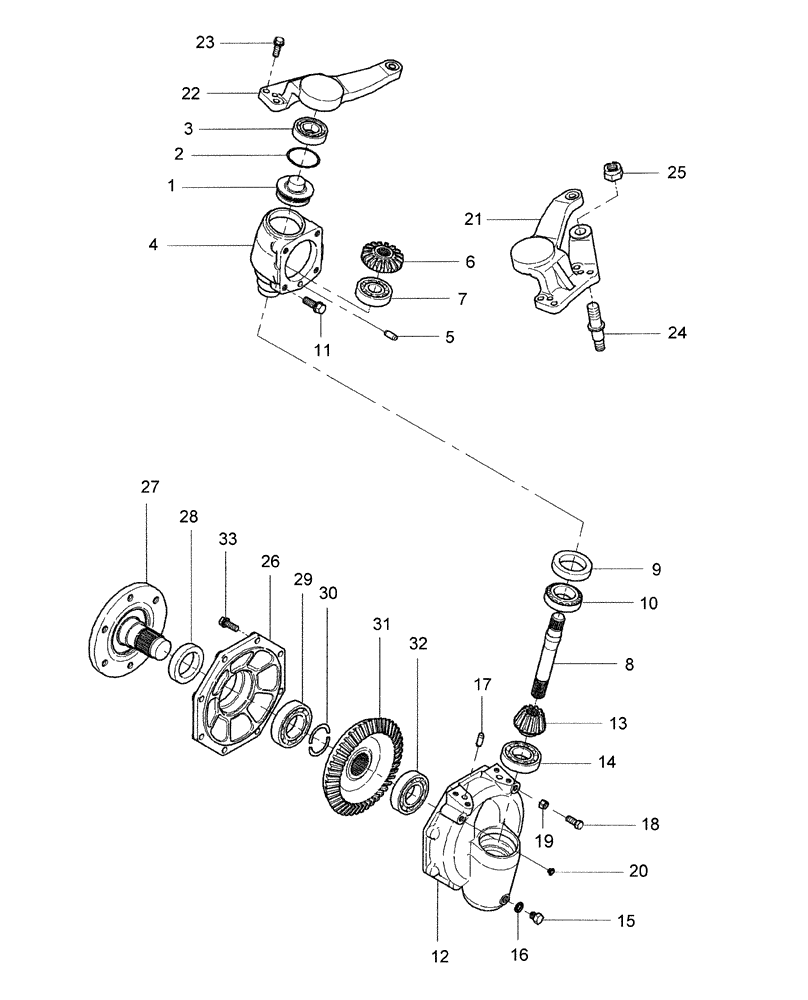

Схема запчастей Case IH FARMALL 31 - (04.06) - FINAL REDUCTION GEARS, W/FWD (04) - FRONT AXLE & STEERING
4
12
31
14
10
20
3
13
26
29
17
19
5
18
6
16
11
21
2
27
24
25
15
23
28
1
22
32
30
9
7
8
33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA330311750

PIN

King

2шт.

2

SBA052300550

O-RING

2шт.

3

SBA040116206

BEARING ASSY,30mm ID x 62mm OD x 16mm W

Ball

2шт.

4

SBA322118560

HOUSING

2шт.

5

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

2шт.

6

SBA326240760

PINION

Final

2шт.

7

SBA040106305

BALL BEARING

2шт.

8

SBA322514330

SHAFT

Drive

2шт.

9

SBA050609048

SEAL PROTECTION

2шт.

10

SBA042532008

TAPERED BEARING

Includes Race

2шт.

11

SBA011511235

BOLT,M12 x 35

8шт.

12

SBA322118540

CASING

2шт.

13

SBA326240670

PINION

Final

2шт.

14

SBA040106207

RING

2шт.

15

SBA010401212

BOLT

M12 x 12

2шт.

16

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

2шт.

17

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

4шт.

18

SBA010331025

BOLT

M10 x 25

2шт.

19

SBA020910010

NUT

M10

2шт.

20

SBA064600040

PLUG

PLUG

2шт.

21

SBA334525320

ARM

LH

1шт.

22

SBA334525340

ARM

RH

1шт.

23

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

8шт.

24

SBA399612071

PIN

1шт.

25

SBA022509001

NUT,U, M20 x 1.5. Cl 8

1шт.

26

SBA322213920

COVER

2шт.

27

SBA326312550

SHAFT

Wheel

2шт.

28

SBA050609049

SEAL

Oil

2шт.

29

SBA040106209

RING

2шт.

30

SBA398340300

CIRCLIP

4шт.

31

SBA326370820

GEAR

Final

2шт.

32

SBA040106208

RING

2шт.

33

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

16шт.
