Запчасти Case IH FARMALL 31 (02.09) - THROTTLE CONTROLS - HAND HST (02) - ENGINE EQUIPMENT

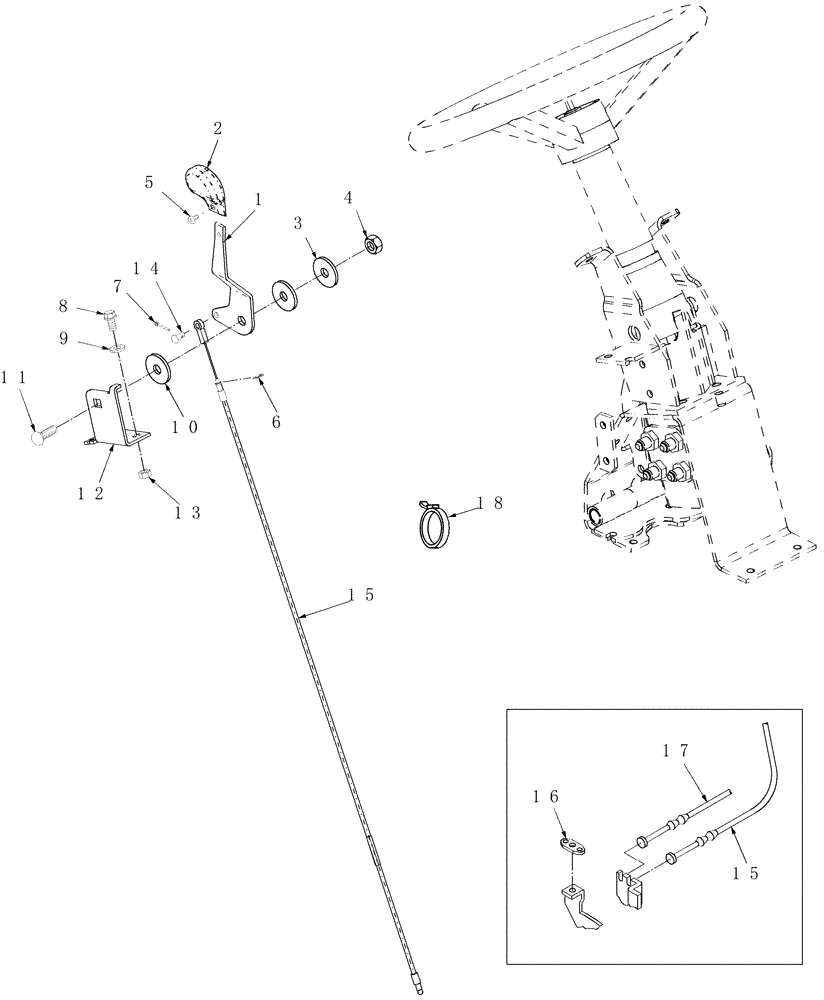

Схема запчастей Case IH FARMALL 31 - (02.09) - THROTTLE CONTROLS - HAND HST (02) - ENGINE EQUIPMENT
11
7
17
12
10
1
9
18
3
6
13
15
15
14
2
4
8
5
16

Артикул

Название

Примечание

Количество

1

86522891

LEVER

Throttle

1шт.

2

9841607

KNOB

1шт.

3

225930

WASHER,11.91mm ID x 38.1mm OD x 3.43mm Thk

1шт.

4

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

5

9844207

SCREW,Phillips Drive, Oval HD, M4 x 8mm, Cl 4.8

1шт.

6

86535854

SNAP RING,M5, Ext

Ext, M4

2шт.

7

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

10

86504705

WASHER,M11.1 x 37.9 x 3.3 Thk, Plastic

2шт.

11

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

12

86519939

BRACKET

Throttle

1шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

14

PL

PROCURE LOCALLY

Rivet

1шт.

15

SBA312070110

CABLE,912mm L

Throttle

1шт.

16

SBA398114451

RUBBER BUSHING

Cover

1шт.

17

SBA312070230

CABLE

Foot Throttle Refer to Fig 02.10

1шт.

18

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

Выбрано товаров: 18
