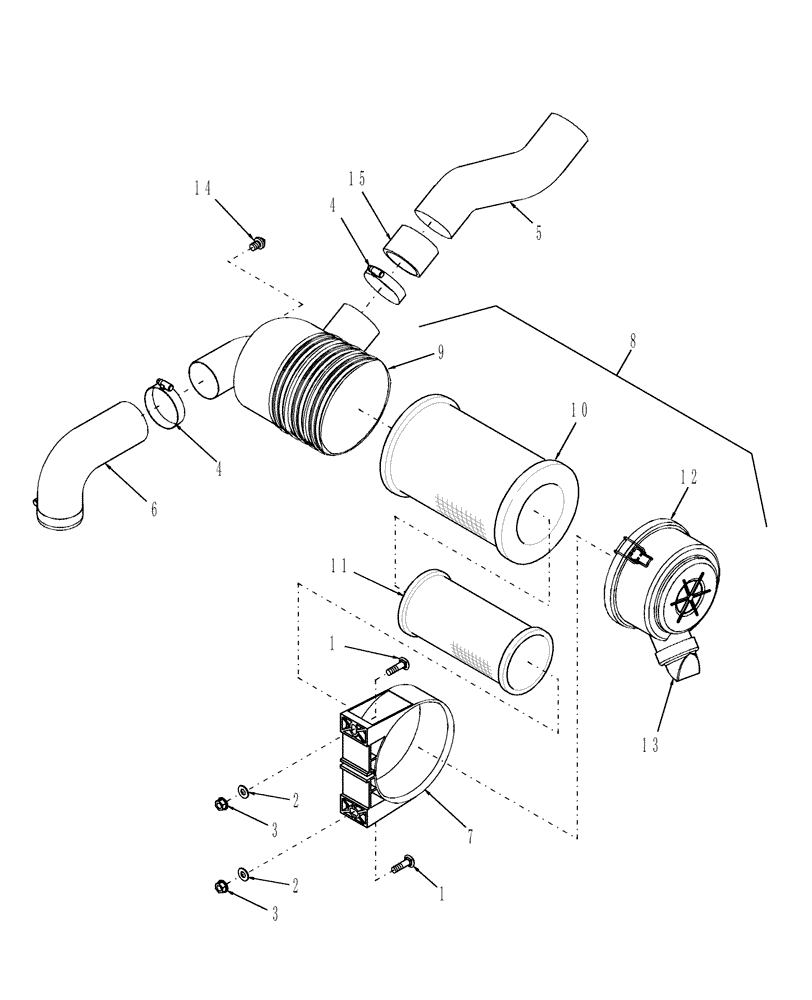

Запчасти Case IH FARMALL 31 (02.04.01) - AIR CLEANER (02) - ENGINE EQUIPMENT

1

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

2шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

4

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

3шт.

5

87308779

INTAKE AIR HOSE,50.80 mm ID x 206.50

Duct

1шт.

6

87300214

INTAKE AIR HOSE,50.80 mm ID x 110.00

Air Filter

1шт.

7

86549702

BRACKET

1шт.

8

86549691

AIR CLEANER

Includes: Ref. 9 thru 14

1шт.

9

86549692

BODY

1шт.

10

87682998

AIR FILTER

Primary, Outer

1шт.

11

84539215

AIR FILTER

Safety, Inner

1шт.

12

86549696

COVER

1шт.

13

82981184

DUST VALVE

Unloader

3шт.

14

86549695

PIPE PLUG,1/8"-27 NPT

1шт.

15

86401516

SLEEVE

Adapter

1шт.
