(02.04) - AIR CLEANER

Запчасти Case IH FARMALL 31 (02.04) - AIR CLEANER (02) - ENGINE EQUIPMENT

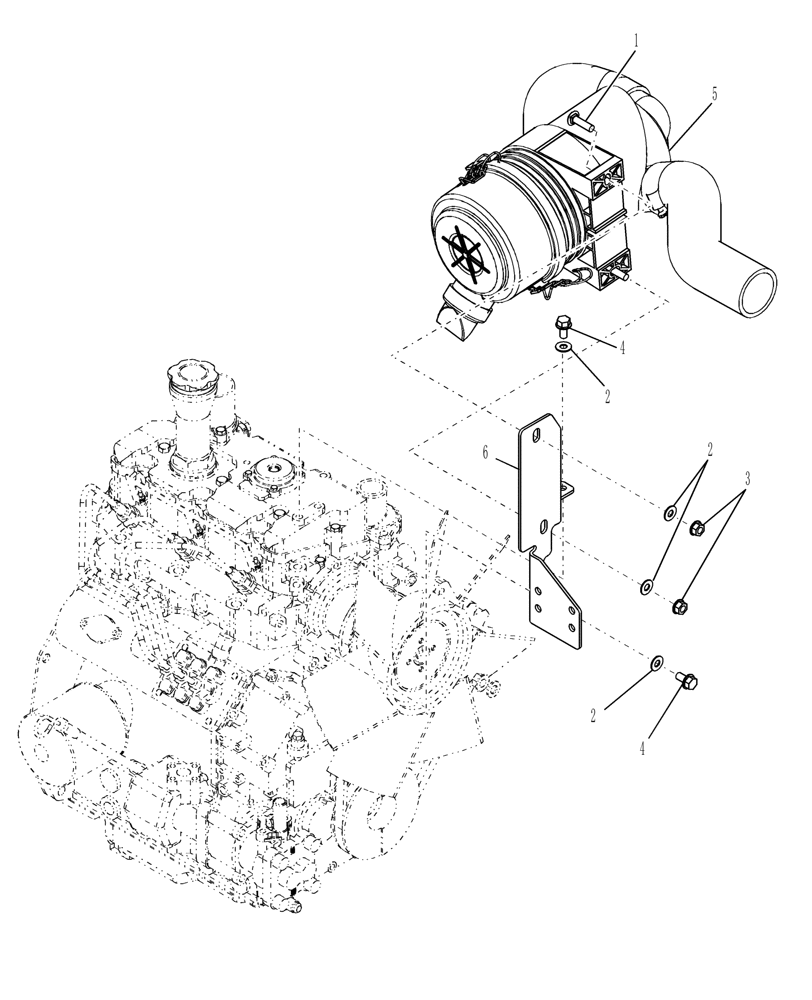

Схема запчастей Case IH FARMALL 31 - (02.04) - AIR CLEANER (02) - ENGINE EQUIPMENT
3
6
4
5
1
2
2
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

2шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

4

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

5

86549691

AIR CLEANER

Refer to Fig. 02.04.01 for Breakdown

1шт.

6

86404462

BRACKET

Power Steering

1шт.
