(11.02) - FRONT END WEIGHTS - 710215046 & 718215056

Запчасти Case IH FARMALL 31 (11.02) - FRONT END WEIGHTS - 710215046 & 718215056 (11) - WHEELS/TRACKS

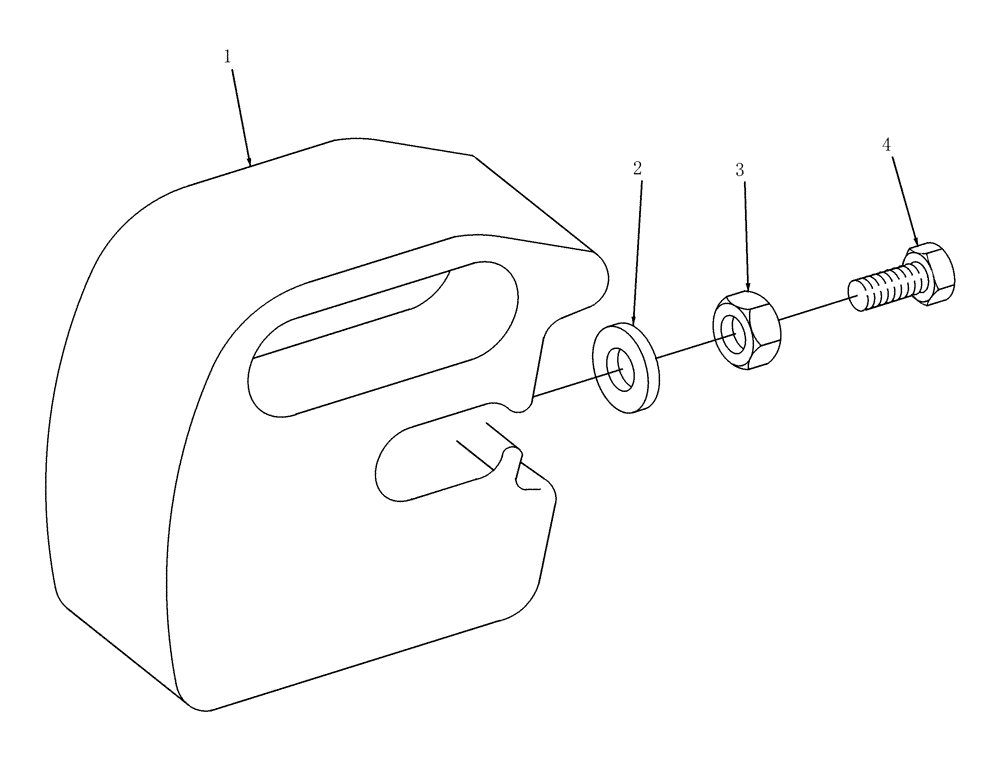

Схема запчастей Case IH FARMALL 31 - (11.02) - FRONT END WEIGHTS - 710215046 & 718215056 (11) - WHEELS/TRACKS
4
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710215046

WEIGHT

Weight, Front End

1шт.

Max Of 2 With All Axle/Tire Combinations Except SuperSteer Axle Equipped With Ag Tires

1шт.

1

718215056

WEIGHT

Weight, Front End

1шт.

Max Of 2 With All Axle/Tire Combinations Including SuperSteer Axle

1шт.

2

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

4

280508

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

1шт.

Выбрано товаров: 7
