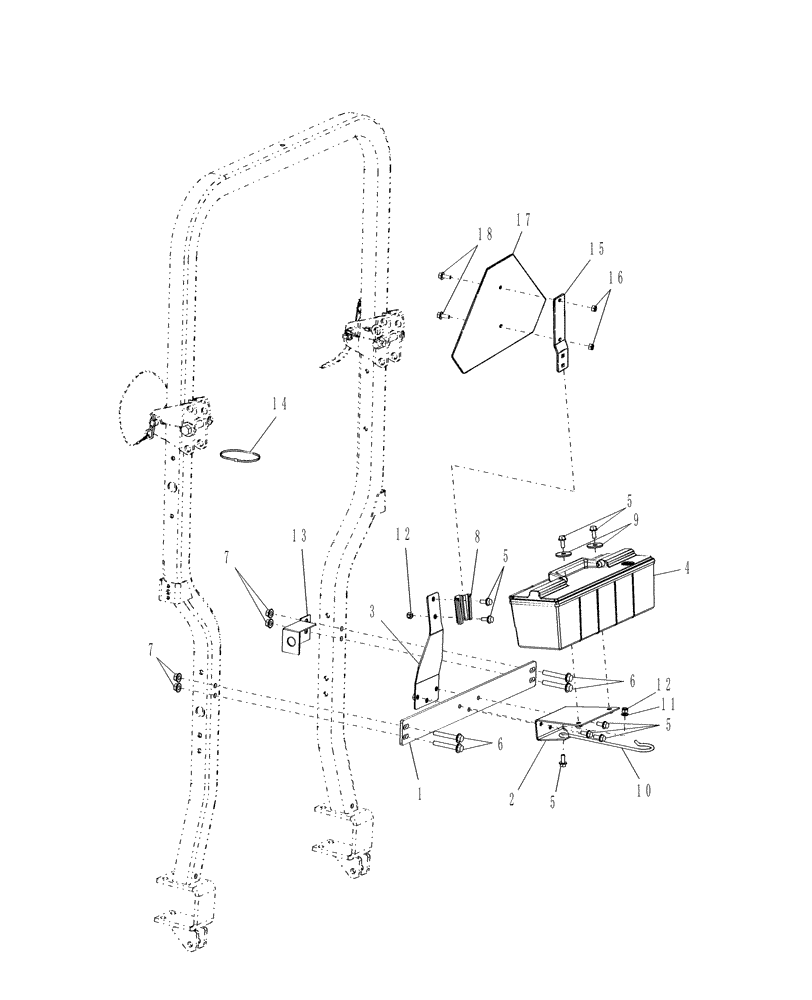

Запчасти Case IH FARMALL 31 (10.05) - TOOL BOX KIT & SMV (10) - OPERATORS PLATFORM/CAB

1

87305317

BRACKET

Toolbox

1шт.

2

87309819

BRACKET

Toolbox Support

1шт.

3

87305004

BRACKET

SMV

1шт.

4

5135060

TOOL BOX

1шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

6

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

4шт.

7

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

8

847590

BRACKET

Socket, Mounting

1шт.

9

86524667

WASHER,M10.3 x 38.1 x .15 Thk

Radiator

2шт.

10

86562358

HOLDER

Top Link

1шт.

11

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

13

87524996

BRACKET

Power Adapter

1шт.

14

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

8шт.

15

195035

SUPPORT

Spade Mount, SMV

1шт.

16

353308

NUT,M6 x 1.0, Cl 8

2шт.

17

87308105

WARNING TRIANGLE

Sign, SMV

1шт.

18

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.
