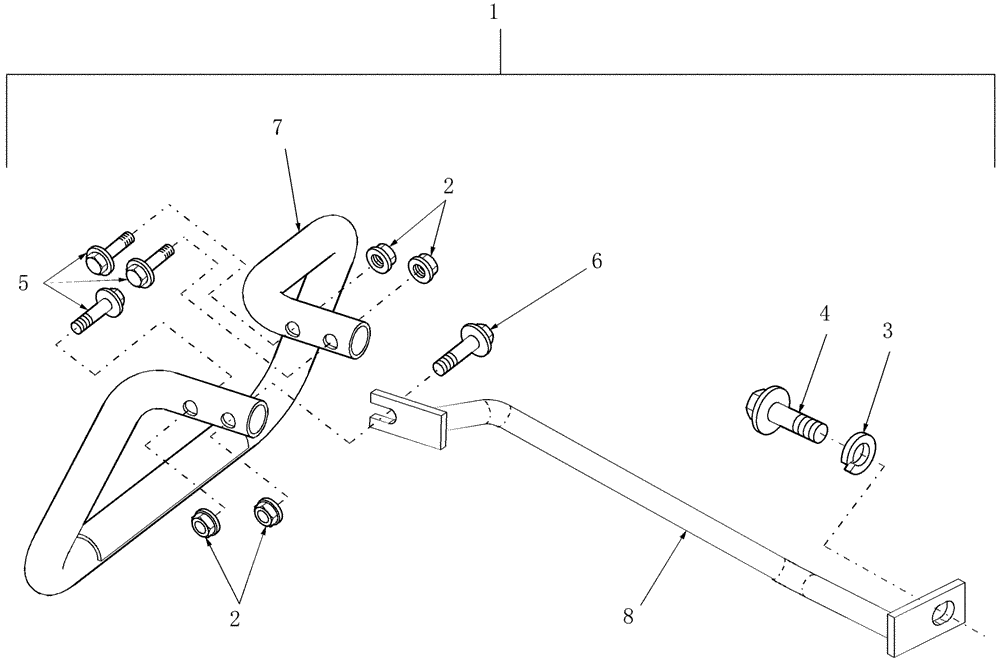

Запчасти Case IH FARMALL 31 (10.02.02) - KITS, RIGHT SIDE & LEFT SIDE STEP (10) - OPERATORS PLATFORM/CAB

1

718709066

DIA KIT, ADD PROD

Right Side Step Includes: Ref. 2 thru 8

1шт.

1

710709046

DIA KIT, ADD PROD

Left Side Step Includes: Ref. 2 thru 8

1шт.

2

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

3

280248

LOCK WASHER,9/16"

1шт.

4

9516470

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

1шт.

5

9804263

BOLT,M10 x 49.2mm, Cl 8.8

3шт.

6

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

1шт.

7

NSS

NOT SOLD SEPARAT

Step, Right

1шт.

7

NSS

NOT SOLD SEPARAT

Step, Left

1шт.

8

NSS

NOT SOLD SEPARAT

Support, Right Step

1шт.

8

NSS

NOT SOLD SEPARAT

Support, Left Step

1шт.
