(25.100.AD[01]) - FRONT AXLE ASSY, FARMALL 30C, 35C

Запчасти Case IH FARMALL 30C (25.100.AD[01]) - FRONT AXLE ASSY, FARMALL 30C, 35C (25) - FRONT AXLE SYSTEM

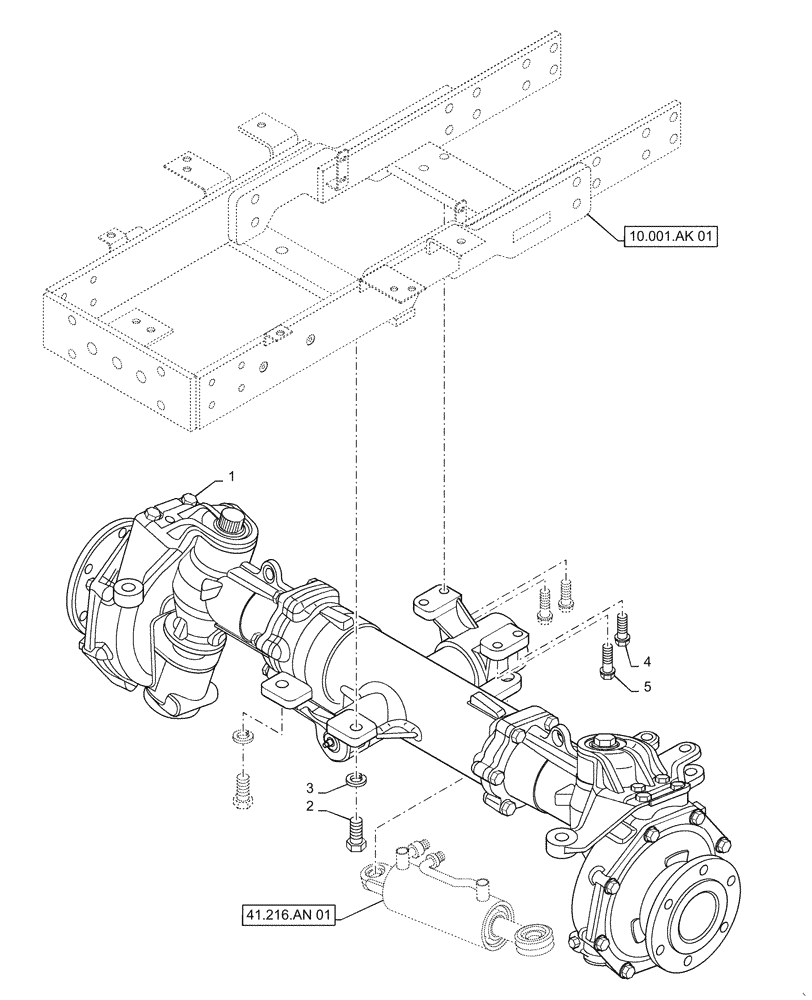

Схема запчастей Case IH FARMALL 30C - (25.100.AD[01]) - FRONT AXLE ASSY, FARMALL 30C, 35C (25) - FRONT AXLE SYSTEM
41.216.an 01
1
3
4
5
2
10.001.ak 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT20126922

FRONT AXLE

Assy

1шт.

2

MT40029476

BOLT,M16 x 1.5 x 40mm

2шт.

3

MT40029555

WASHER,16.20mm ID x 28mm OD x 4mm Thk

Spring

2шт.

4

MT40028960

BOLT,Hex, M12 x 1.25 x 40mm

2шт.

5

MT40028961

BOLT,Hex, M12 x 1.25 x 45mm

2шт.
