(55.525.AL[01]) - ENGINE CONTROL, LEVER, FARMALL 30C, 35C, 40C, 50C

Запчасти Case IH FARMALL 30C (55.525.AL[01]) - ENGINE CONTROL, LEVER, FARMALL 30C, 35C, 40C, 50C (55) - ELECTRICAL SYSTEMS

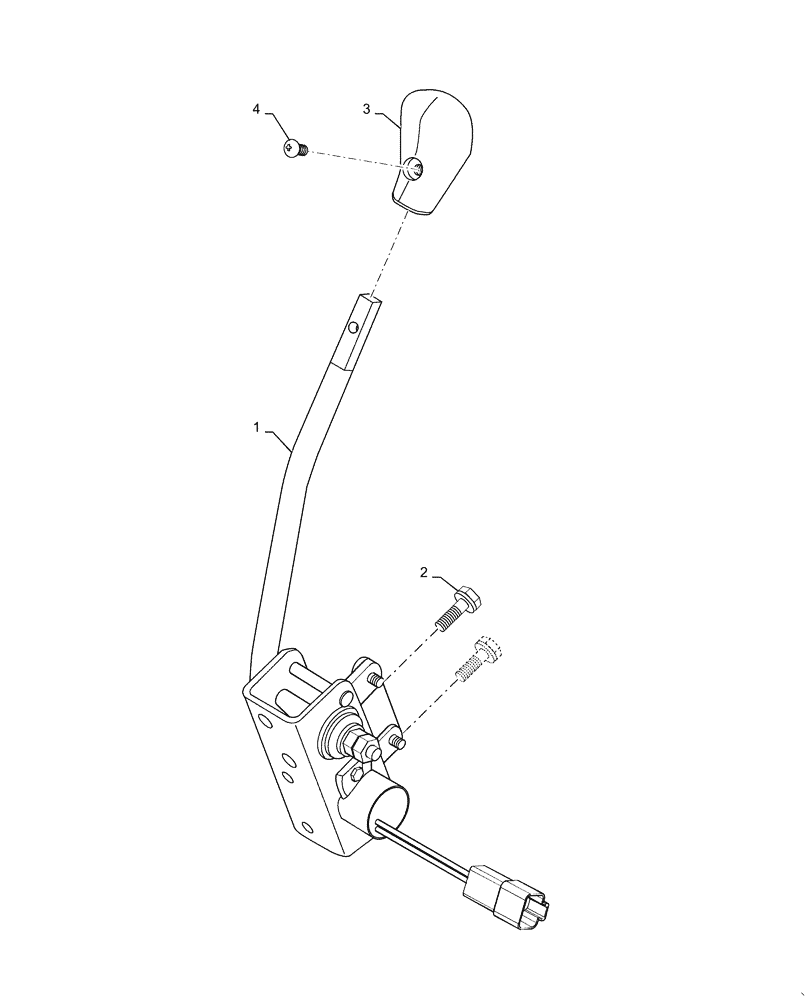

Схема запчастей Case IH FARMALL 30C - (55.525.AL[01]) - ENGINE CONTROL, LEVER, FARMALL 30C, 35C, 40C, 50C (55) - ELECTRICAL SYSTEMS
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40293013

LEVER

Assy, Hand Throttle

1шт.

2

MT40028965

BOLT,M6 x 1 x 20mm

2шт.

3

MT40008389

KNOB

Acl

1шт.

4

MT40029019

SCREW,M5 x 0.8 x 10mm

1шт.
