(55.512.00[06]) - ELECTRIC PANEL, POSITION SENSOR, FARMALL 30C, 35C

Запчасти Case IH FARMALL 30C (55.512.00[06]) - ELECTRIC PANEL, POSITION SENSOR, FARMALL 30C, 35C (55) - ELECTRICAL SYSTEMS

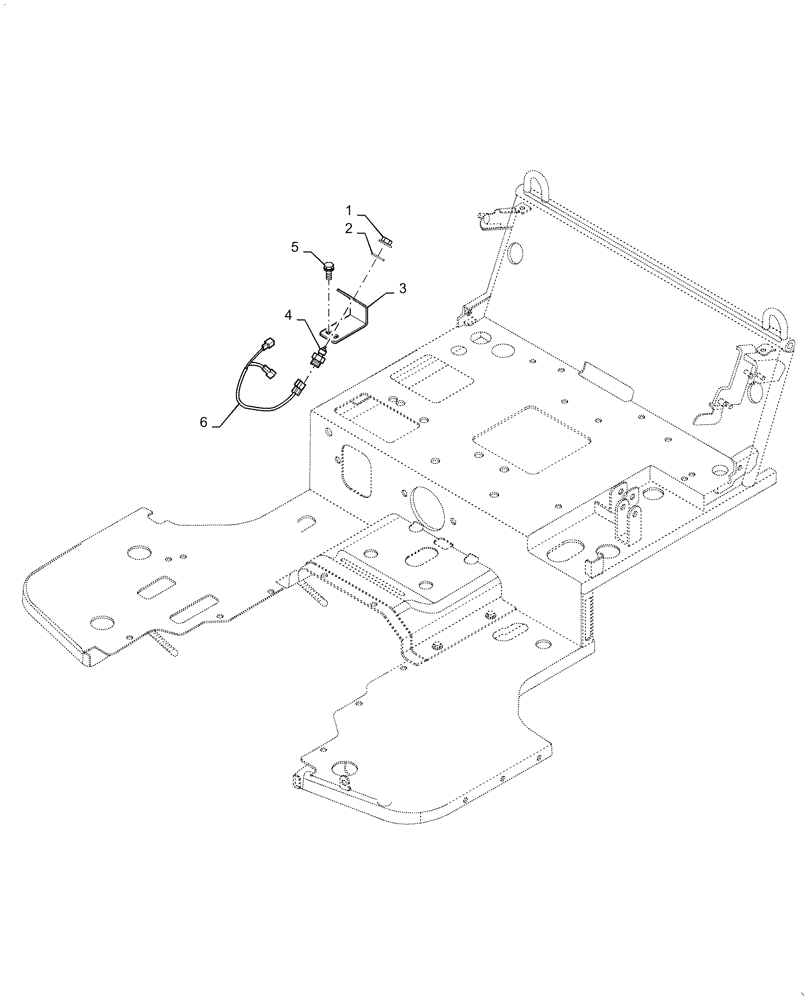

Схема запчастей Case IH FARMALL 30C - (55.512.00[06]) - ELECTRIC PANEL, POSITION SENSOR, FARMALL 30C, 35C (55) - ELECTRICAL SYSTEMS
1
2
5
6
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40029057

NUT,Hex, M14 x 1.5

Small

1шт.

2

MT40097532

WASHER,23mm OD x 14.5mm ID x 1mm Thk

1шт.

3

MT40296756

BRACKET

Position Switch

1шт.

4

MT40007114

SWITCH ASSY,12V, 10A

Safety

1шт.

5

MT40028971

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

6

MT40264139

WIRE HARNESS,Beacon

Beacon Socket

1шт.
