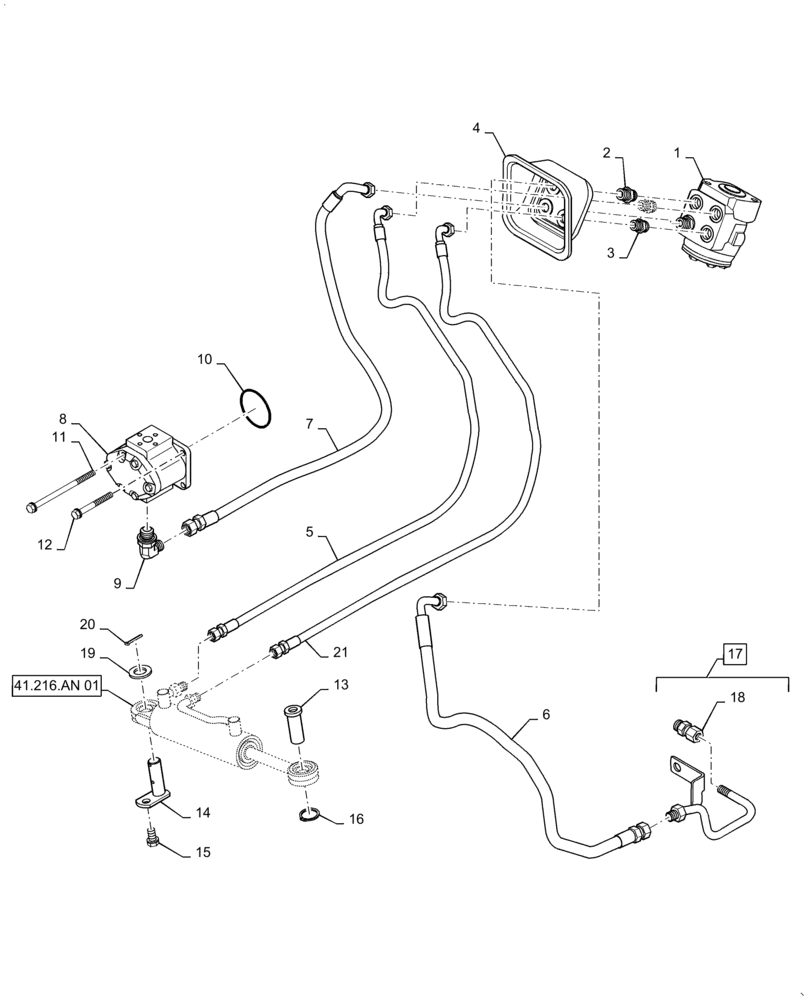

Запчасти Case IH FARMALL 30C (41.216.AN[02]) - STEERING CYLINDER AND LINES, MECH, FARMALL 30C, 35C (41) - STEERING

1

MT40200338

STEERING VALVE

1шт.

2

MT40010152

JOINT,3/8" x 3/8"

1шт.

3

MT40010149

JOINT,3/8" x 1/4"

2шт.

4

MT40007310

COVER

Strg Hose

1шт.

5

MT40266751

HOSE,1/4" x 1860mm L

Strg Cylinder, LH

1шт.

6

MT40007852

HOSE,3/8” x 1110mm L

Strg Drain

1шт.

7

MT40266753

HOSE,3/8” x 1080mm L

Strg Press

1шт.

8

MT40265893

PUMP

Strg

1шт.

9

MT40265900

ELBOW

Hose

1шт.

10

MT40029225

O-RING,3.1 Thk x 59.4mm ID

1шт.

11

MT40266095

BOLT

2шт.

12

MT40028932

BOLT,Hex, M8 x 1.25 x 75mm

2шт.

13

MT40009475

PIN,20mm OD x 59mm L

Strg Cyl

1шт.

14

MT40279932

PIN

Strg Cyl

1шт.

15

MT40028936

BOLT,M10 x 1.5 x 20mm

1шт.

16

MT40029266

SNAP RING,M20

1шт.

17

MT40008117

PIPE

Strg Drain, Incl 18

1шт.

18

MT40009978

JOINT,12mm OD x 3/8”

1шт.

19

MT40028181

WASHER,21mm ID x 37mm OD x 3mm

Plain

1шт.

20

MT40114548

PIN,25mm OD x 40mm L

Split

1шт.

21

MT40266752

HOSE,1/4"

Strg Cylinder, RH

1шт.
