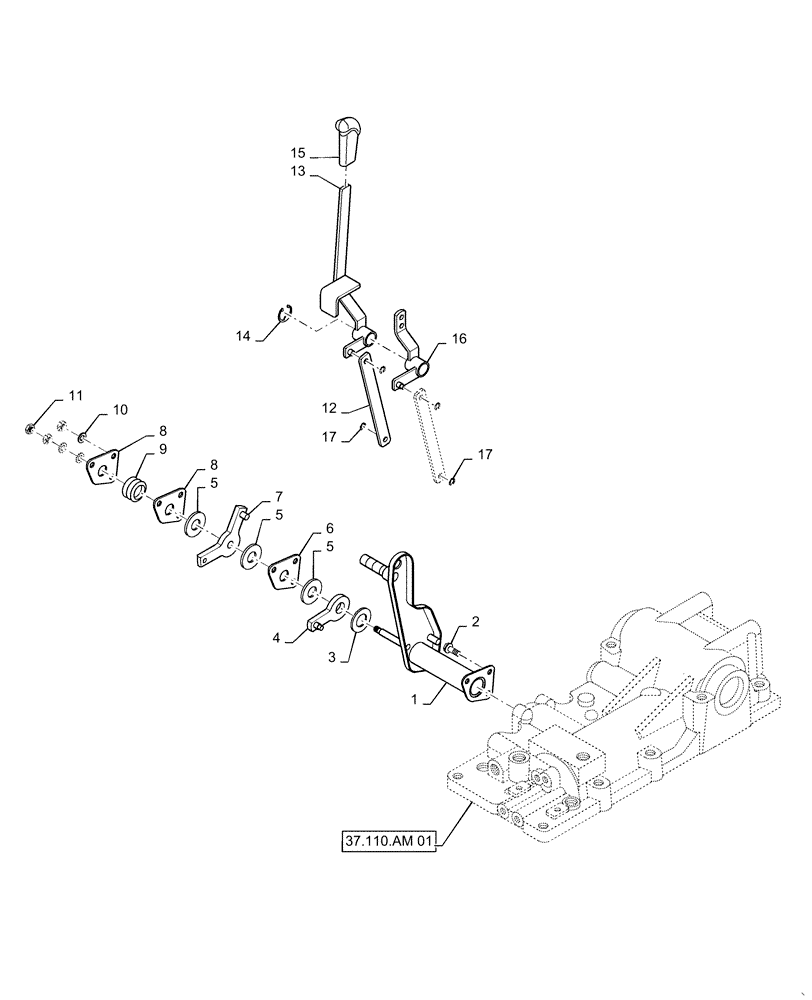

Запчасти Case IH FARMALL 30C (37.108.AE[01]) - HYDRAULIC CONTROL LEVER, FARMALL 30C, 35C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

MT40011035

BRACKET

Hydraulic Lever

1шт.

2

MT40028947

BOLT,Hex, M10 x 1.25 x 20mm

1шт.

3

MT40006943

PLATE,21mm ID x 40mm OD x 2mm Thk

Friction

1шт.

4

MT40012164

ARM

Draft Lever

1шт.

5

MT40006942

PLATE,13mm ID x 40mm OD x 2mm Thk

3шт.

6

MT40011868

COVER,3.2mm Thk

Spring

1шт.

7

MT40282030

ARM

Position Control

1шт.

8

MT40012316

PLATE,3.2mm Thk

Locking

2шт.

9

MT40012375

SPRING,27mm OD x 23mm L

1шт.

10

MT40029543

WASHER,6.10mm ID x 12.20mm OD x 1.50mm Thk

Spring

3шт.

11

MT40028763

NUT,M6 x 1.0

3шт.

12

MT40009452

LINK,19mm x 4.5mm Thk x 187mm L

Hydraulic Lever

2шт.

13

MT40296744

LEVER

Position

1шт.

14

MT40029322

SNAP RING,M15, Ext

1шт.

15

MT40008329

GRIP

Aux Lever

1шт.

16

MT40281688

LEVER

Draft

1шт.

17

MT40029314

SNAP RING,M6

4шт.
