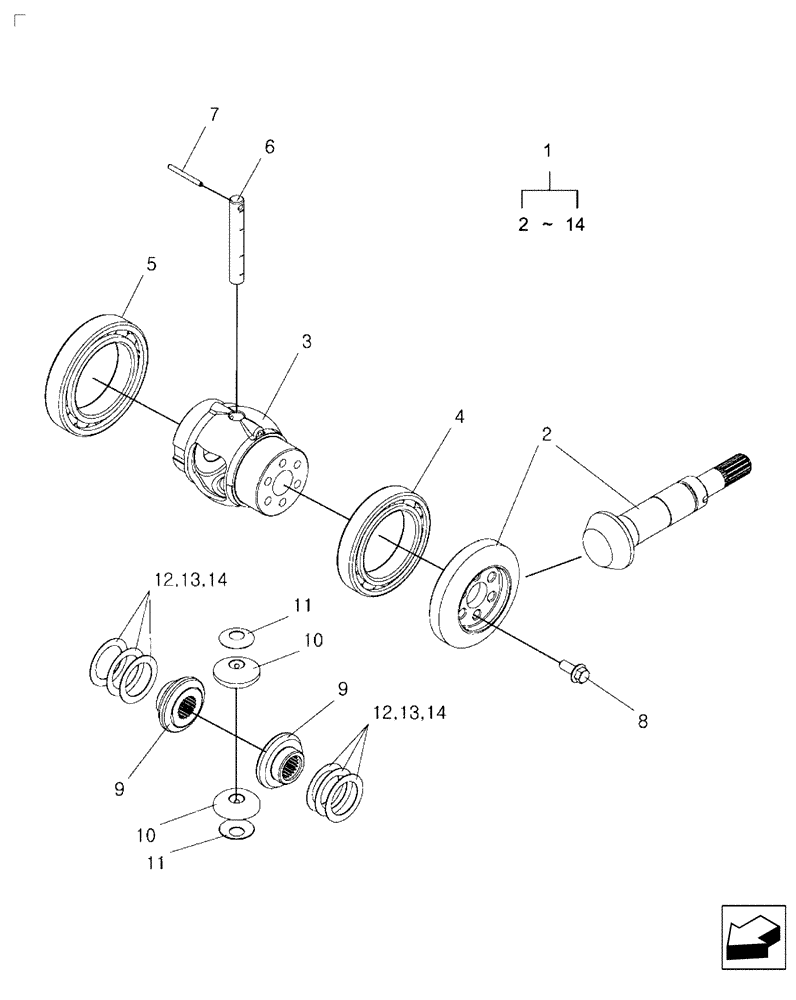

Запчасти Case IH FARMALL 30B (25.102.01) - FRONT DIFFERENTIAL (25) - FRONT AXLE SYSTEM

1

MT40188907

DIFFERENTIAL

DIFF, FRONT Includes: 2-14

1шт.

2

MT40188908

GEAR SET

GEAR SET, PINION & RING

1шт.

3

MT40188911

CASE

CASE, DIFF

1шт.

4

MT40188918

BALL BEARING

BEARING, BALL #6013

1шт.

5

MT40188919

BALL BEARING

BEARING, BALL #6014

1шт.

6

MT40188914

SHAFT

SHAFT, DIFF

1шт.

7

MT40116116

PIN,4mm OD x 40mm L

PIN, SPRING

1шт.

8

MT40182447

BOLT,M8

Flange, M8

6шт.

9

MT40188912

GEAR,14T

GEAR, DIFF SIDE 14T

2шт.

10

MT40188913

GEAR,10T

GEAR, MATE 10T

2шт.

11

MT40188916

SHIM,13.5mm ID x 31mm OD x 0.8mm Thk

LINER, DIFF PINION O.D. 31 x I.D. 13.5 x 0.8T

2шт.

12

MT40188915

SHIM,32.5mm ID x 46mm OD x 0.8mm Thk

LINER, DIFF GEAR O.D. 46 x I.D. 32.5 x 0.8T

2шт.

13

MT40214735

SHIM,32.5mm ID x 46mm OD x 0.6mm Thk

LINER, DIFF GEAR O.D. 46 x I.D. 32.5 x 0.4T

2шт.

14

MT40214736

SHIM,32.5mm ID x 46mm OD x 0.4mm Thk

LINER, DIFF GEAR O.D. 46 x I.D. 32.5 x 0.4T

2шт.
