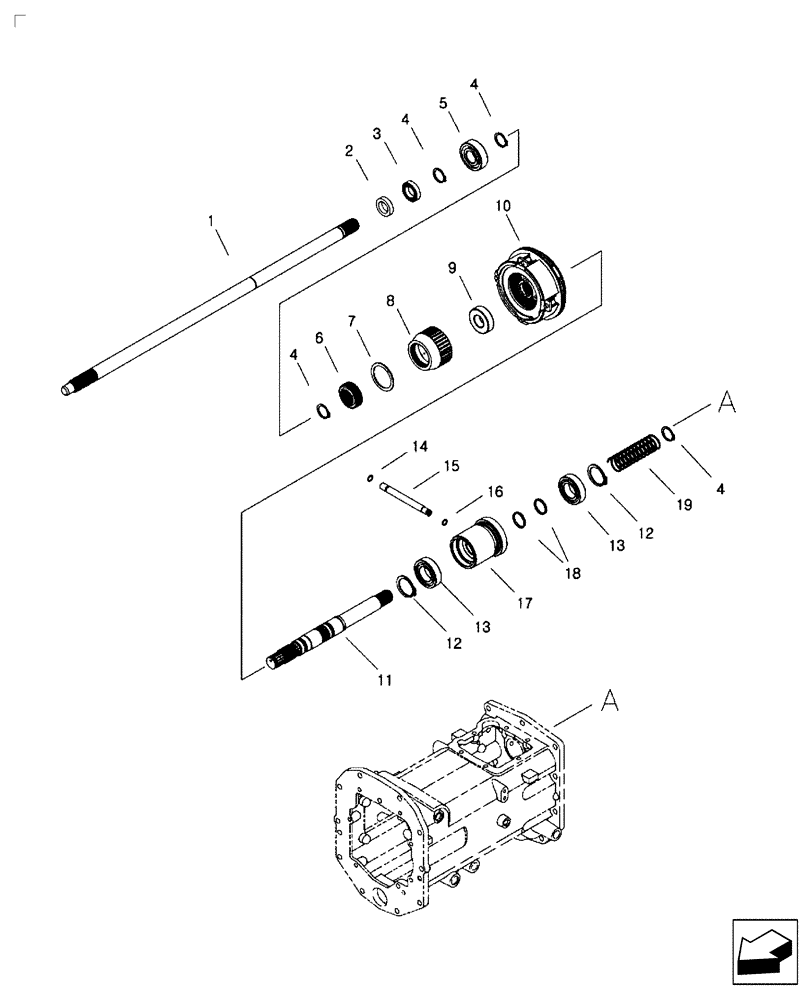

Запчасти Case IH FARMALL 30B (21.148.03) - PTO SHAFT - 12X12 (21) - TRANSMISSION

1

MT40009083

SHAFT

Main PTO O.D. 20.0 x 600.0

1шт.

2

MT40012689

SEAL

Oil #1201

1шт.

3

MT40012722

BALL BEARING

#68040

1шт.

4

MT40029265

SNAP RING,M20

3шт.

5

MT40012702

BALL BEARING

#62040

1шт.

6

MT40010037

JOINT,39.7mm OD x 17.5mm ID x 16L

Hyd Clutch Hub O.D. 39.75 x I.D. 17.5 x 16

1шт.

7

MT40029277

SNAP RING,M40

1шт.

8

MT40009734

HUB,59.667mm OD x 38.5mm ID x 41.3L

PTO Hyd Clutch O.D. 59.667 x I.D. 37.5 x 41.5

1шт.

9

MT40012696

BALL BEARING

#60040

1шт.

10

MT40007685

CLUTCH

PTO

1шт.

11

MT40009655

SHAFT,25mm OD x 252L

Indicator PTO Drive O.D. 25.0 x 252.0

1шт.

12

MT40029271

SNAP RING,M25

2шт.

13

MT40012697

BALL BEARING

#60050

2шт.

14

MT40029238

O-RING,1.50mm Thk x 7.50mm ID

1шт.

15

MT40009793

PIPE,9.8mm OD x 3.5mm ID x 104L

Hyd Clutch Input O.D. 9.8 x I.D. 3.5 x 104

1шт.

16

MT40029237

O-RING,1.50mm Thk x 6.50mm ID

1шт.

17

MT40009742

SLEEVE,62mm OD x 25.14mm ID x 61.3L

Hyd Circuit O.D. 62.0 x I.D. 25.14 x 61.3

1шт.

18

MT40012098

SEALING RING

SEALRING

2шт.

19

MT40034586

SPRING

1шт.
