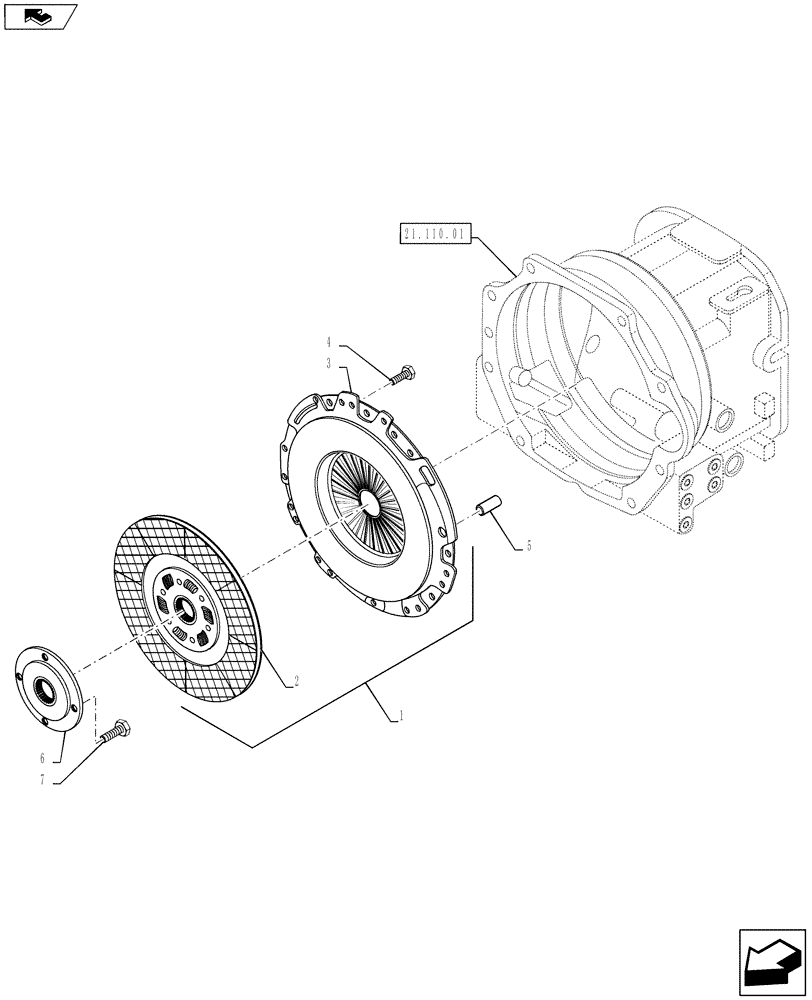

Запчасти Case IH FARMALL 30B (18.110.01) - CLUTCH - 12X12 (18) - CLUTCH

1

MT40007862

CLUTCH

Includes: 2 & 3

1шт.

2

MT40007678

CLUTCH

Disc

1шт.

2

MT40007678R

REMAN-CLUTCH DISC

1шт.

2

MT40007678C

CORE-CLUTCH KIT

Return Number

1шт.

3

MT40007595

COVER

Clutch

1шт.

3

MT40007595R

REMAN-CLUTCH PLATE

1шт.

3

MT40007595C

CORE-CLUTCH PLATE

Return Number

1шт.

4

MT40028923

BOLT,Hex, M8 x 1.25 x 25mm

Hex W/Washer, M8 x 1.25 x 25

6шт.

5

MT40029101

PIN,8mm OD x 16mm L

3шт.

6

MT40009614

SLEEVE

Fly Wheel O.D. 132 x I.D. 20 x 40

1шт.

7

MT40028937

BOLT,Hex, M10 x 1.5 x 25mm

Hex W/Washer, 10 x 1.5 x 25

4шт.
