(10.216.01) - FUEL TANK

Запчасти Case IH FARMALL 30B (10.216.01) - FUEL TANK (10) - ENGINE

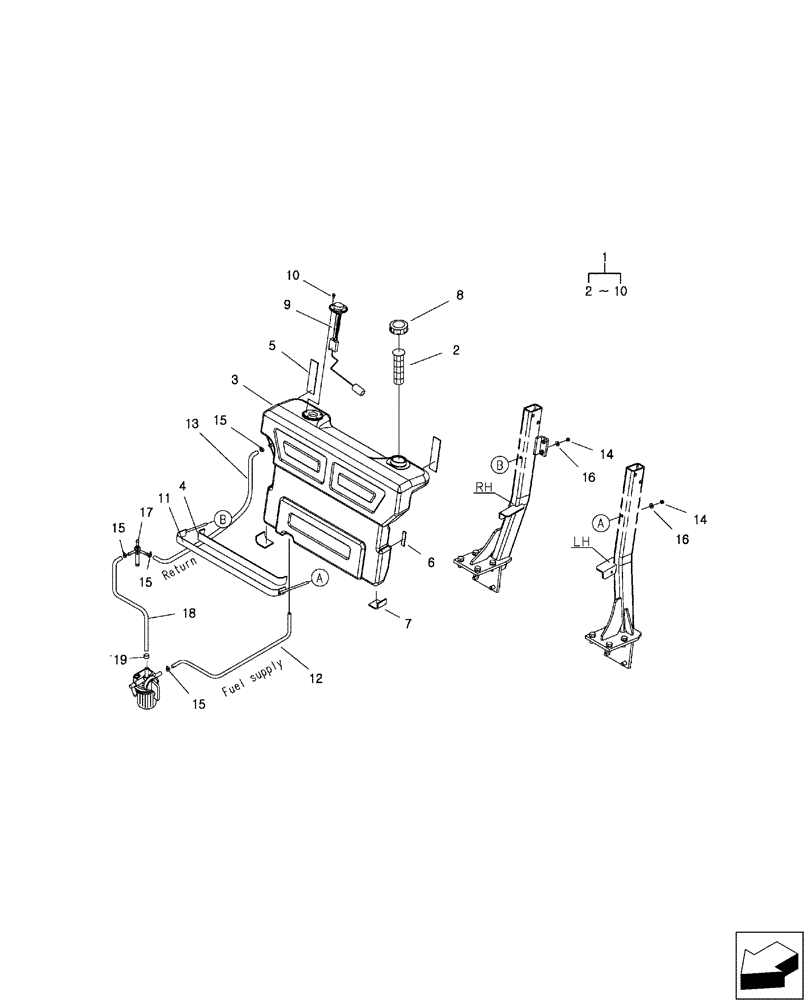

Схема запчастей Case IH FARMALL 30B - (10.216.01) - FUEL TANK (10) - ENGINE
10
15
2
13
2
6
15
16
3
15
5
10
8
7
9
14
1
4
17
19
12
16
11
14
15
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40006736

FUEL TANK

Includes: Ref. 2-10

1шт.

2

MT40008416

FILTER STRAINER

Fuel Tank

1шт.

3

MT40008207

FUEL TANK

1шт.

4

MT40006893

INSULATION

Tank Band 651 x 40 x 5T

1шт.

5

MT40006870

INSULATION

Fuel Tank 200 x 20 x 5T

2шт.

6

MT40006857

INSULATION

Fuel Tank 30 x 20 x 5T

2шт.

7

MT40006880

INSULATION

Bottom

2шт.

8

MT40006786

CAP

Fuel

1шт.

9

MT40181431

FUEL GAUGE

1шт.

10

MT40028908

BOLT,Hex, M5 x 0.8 x 16mm

Hex M5 x 1.8 x 16

5шт.

11

MT40012462

WIRE

1шт.

12

MT40007491

HOSE

Fuel O.D. 14.5 x I.D. 8.5 x 1485

1шт.

13

MT40007493

HOSE,8.5mm ID x 2200mm L

Fuel Return O.D. 14.5 x I.D. 8.5 x 2200

1шт.

14

MT40027836

NUT

Lock

2шт.

15

MT40012020

HOSE CLAMP,8mm -16mm

Hose

4шт.

16

MT40028194

WASHER,8.4mm ID x 20mm OD x 1.6mm Thk

O.D. 20 x I.D. 8.4 x 1.6T

2шт.

17

MT40234539

ADAPTER

Fuel Hose

1шт.

18

MT40235053

HOSE

Fuel Filter

1шт.

19

MT40152040

CLIP

CLAMP, Hose

1шт.
