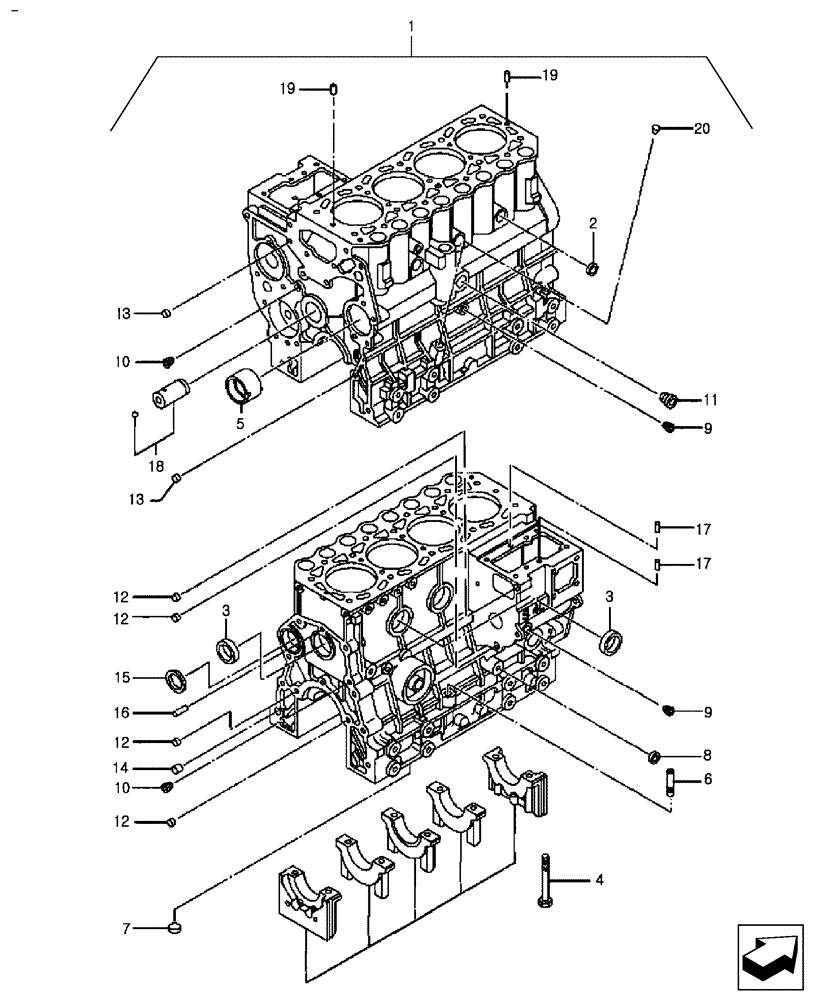

Запчасти Case IH FARMALL 30B (10.001.02) - CYLINDER BLOCK ASSEMBLY (10) - ENGINE

1

MT40220441

CYLINDER BLOCK

Includes: 2-23

1шт.

2

MT40052309

CAP

Sealing

3шт.

3

MT40052310

CAP

Sealing

3шт.

4

MT40224945

BOLT

Bearing, Cap

10шт.

5

MT40109206

BUSHING

Camshaft

1шт.

6

MT40225215

GUIDE

Oil Level Gauge

1шт.

7

MT40122980

CAP

Sealing

1шт.

8

MT40225185

CAP

Sealing

1шт.

9

MT40124409

PLUG

2шт.

10

MT40224200

DRAIN PLUG

2шт.

11

MT40176122

PLUG

Taper

1шт.

12

MT40176092

BUSHING

Knock

4шт.

13

MT40225230

BUSHING

Knock

2шт.

14

MT40225231

BUSHING

Knock

1шт.

15

MT40152860

PLUG

Expansion

1шт.

16

MT40225181

PIN

Dowel

1шт.

17

MT40225211

PIN

Dowel

2шт.

18

MT40224964

SHAFT

Idler

1шт.

19

MT40152705

PIN

Dowel

2шт.

20

MT40225136

DRAIN PLUG

1шт.
