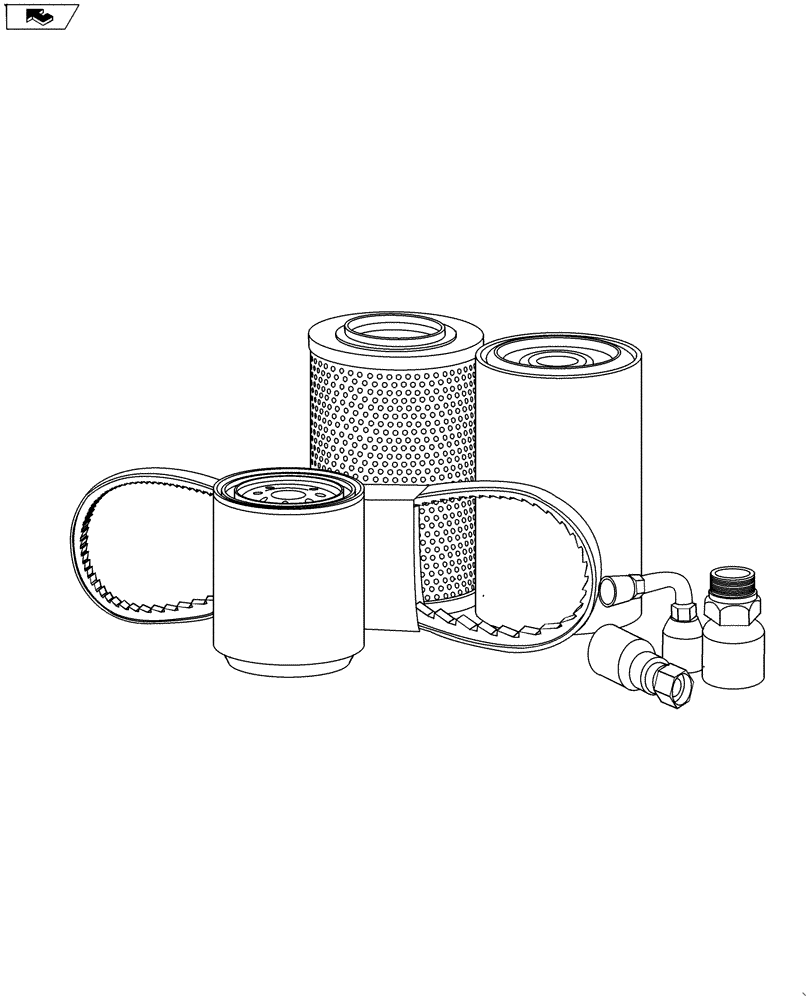

Запчасти Case IH FARMALL 30B (00.100.01) - INITIAL STOCKING LIST (ISL) FARMALL 30B & 35B (00) - GENERAL & PICTORIAL INDEX

LIST A

Parts Required For Preventative Maintenance

1шт.

1

MT40056451

ENGINE OIL FILTER

2шт.

2

87682998

AIR FILTER

Primary

2шт.

3

84539215

AIR FILTER

Safety

2шт.

4

MT40007563

FILTER

Hydraulic

2шт.

5

MT40007638

HYDRAULIC OIL FILTER

Inline Suction

2шт.

6

MT40055759

BELT

Fan

2шт.

7

MT40223960

ELEMENT

Fuel

2шт.

LIST B

Parts Required For Preventative Maintenance And Basic Repair

1шт.

8

MT40109253

DIPSTICK

Dipstick

1шт.

9

MT40109514

GLOW PLUG

8шт.

10

MT40189702

SOLENOID

1шт.

11

MT40225132

THERMOSTAT

1шт.

12

MT40052872

TEMPERATURE SENDER

1шт.

13

MT40109287

MFD SWITCH

Oil

1шт.

14

MT40181431

FUEL GAUGE

1шт.

15

MT40006786

CAP

Fuel

1шт.

16

MT40224801

RADIATOR HOSE

Upper, Outlet

1шт.

17

MT40224802

RADIATOR HOSE

Lower, Inlet

1шт.

18

MT40007443

GAUGE

1шт.

19

MT40186104

FUSE,50A

Main, 50A

5шт.

20

MT40194373

SWITCH

Combination

1шт.

21

MT40234126

SWITCH

Horn

1шт.

22

MT40185307

SWITCH

PTO Select

1шт.

23

MT40007119

IGNITION SWITCH

1шт.

24

MT40007187

SWITCH,12V, 20A

PTO Start

1шт.

25

MT40012887

MFD SWITCH,12V, 5A

Brake Light

1шт.

26

MT40230107

RELAY

Flasher Unit

1шт.

27

MT40007175

RELAY

Start

1шт.

28

MT40007122

RELAY,12V/40A/30A

Engine Stop

1шт.

29

MT40196911

FLASHER UNIT

1шт.

30

MT40229786

ALARM,Buzzer

Park Brake

1шт.

31

MT40007191

RELAY,12V, 70A

Glow

1шт.

32

MT40229995

SWITCH

Shuttle Lever

1шт.

33

MT40007202

BULB,12V, 21/5W

5шт.

34

MT40007023

TAIL LAMP

RH

1шт.

35

MT40007067

TAIL LAMP

LH

1шт.

36

MT40232285

FLASHER LAMP,12V

Hazard, RH

1шт.

37

MT40232286

FLASHER LAMP,12V

Hazard, LH

1шт.

38

MT40189711

CAP

Oil Fill

1шт.

39

MT40050179

CRUISE ON/OFF SWITCH

1шт.

40

MT40007207

BULB,12V, 21W

5шт.

41

MT40234130

RELAY

Headlamp

1шт.
