(88.100.11) - DIA KIT, FRONT WEIGHT CARRIER - 718233006

Запчасти Case IH FARMALL 30B (88.100.11) - DIA KIT, FRONT WEIGHT CARRIER - 718233006 (88) - ACCESSORIES

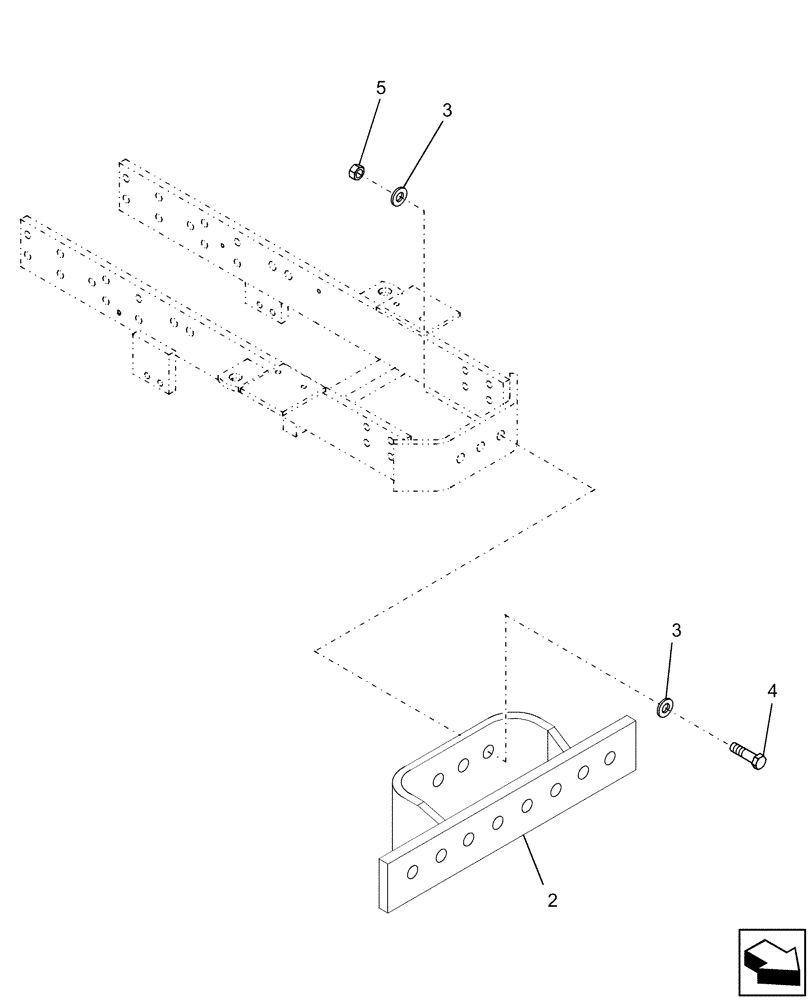

Схема запчастей Case IH FARMALL 30B - (88.100.11) - DIA KIT, FRONT WEIGHT CARRIER - 718233006 (88) - ACCESSORIES
3
4
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718233006

KIT

Front Weight Carrier (will hold up to (5) 60 lb. weights (710215016) or (5) 100 lb. weights (718215036) Includes: Ref. 2-5

1шт.

2

86402249

BRACKET

1шт.

3

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

6шт.

4

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

3шт.

5

100020

NUT,M16 x 2.0, Cl 8

3шт.
