(55.414.01) - WATER TEMPERATURE GAUGE, DRAIN PLUG & OIL PRESSURE SWITCH

Запчасти Case IH FARMALL 30B (55.414.01) - WATER TEMPERATURE GAUGE, DRAIN PLUG & OIL PRESSURE SWITCH (55) - ELECTRICAL SYSTEMS

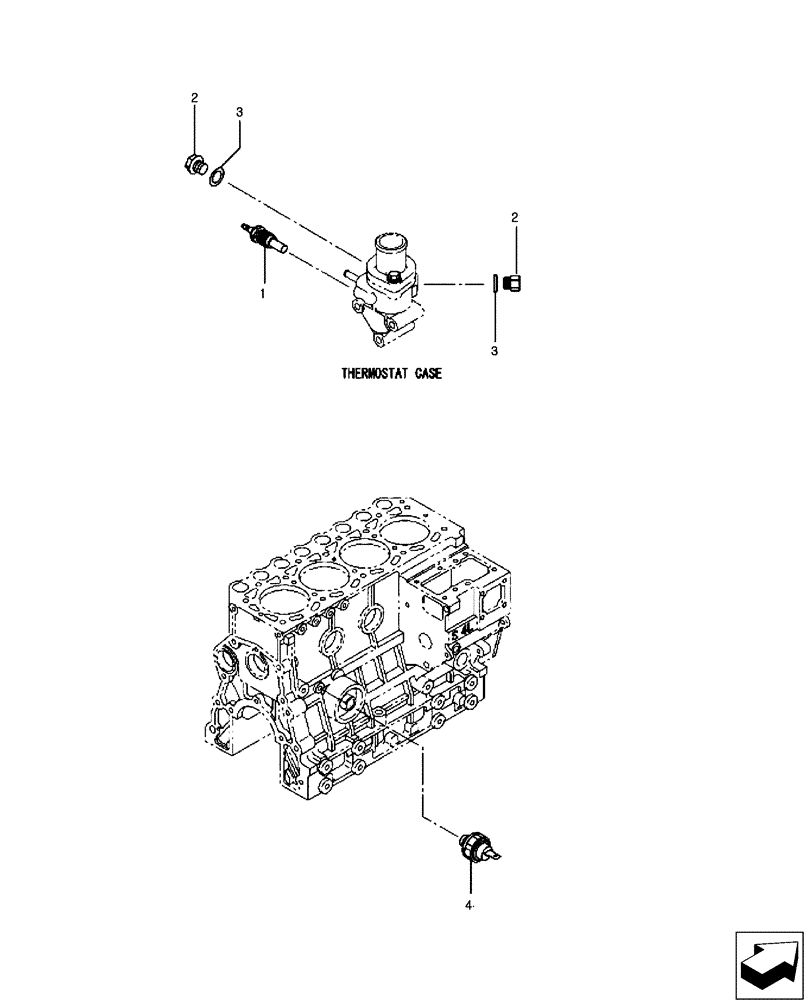

Схема запчастей Case IH FARMALL 30B - (55.414.01) - WATER TEMPERATURE GAUGE, DRAIN PLUG & OIL PRESSURE SWITCH (55) - ELECTRICAL SYSTEMS
3
4
2
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40052872

TEMPERATURE SENDER

Water

1шт.

2

MT40124376

PLUG

Drain

2шт.

3

MT40224909

WASHER

Sealing

2шт.

4

MT40109287

MFD SWITCH

Oil

1шт.
