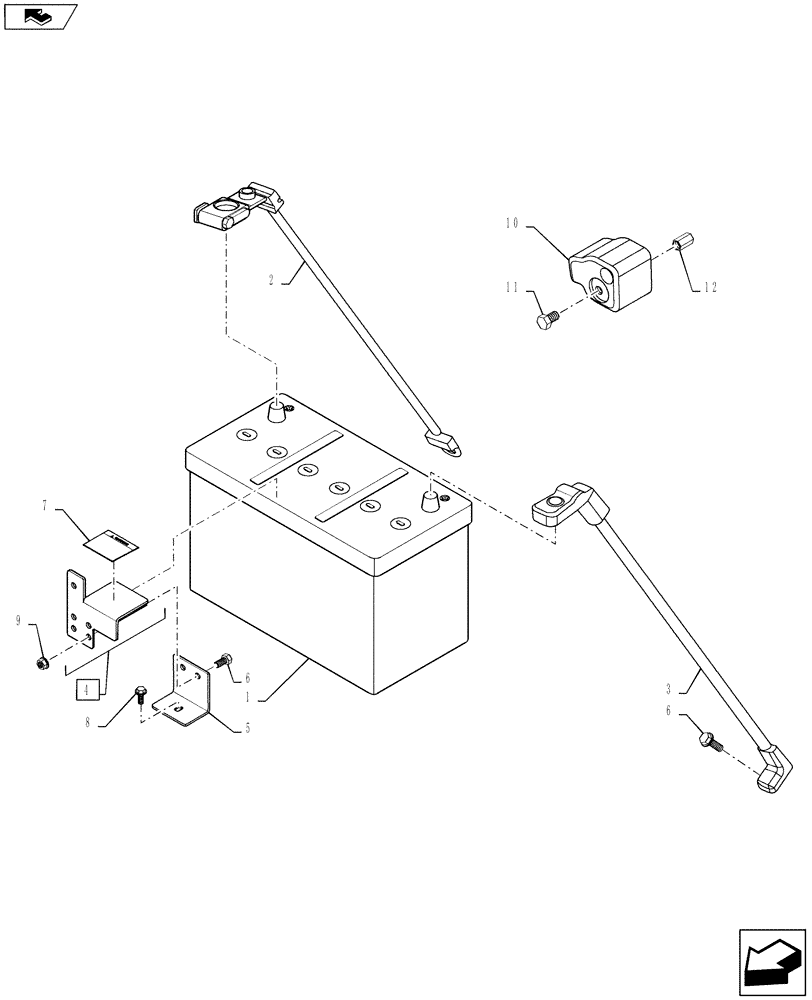

Запчасти Case IH FARMALL 30B (55.301.02) - BATTERY (55) - ELECTRICAL SYSTEMS

1

BCM34770W

WET BATTERY

U.S.

1шт.

1

BCM34770WC

Canada

1шт.

2

MT40234909

NEG BATTERY CABLE

1шт.

3

MT40007157

POS BATTERY CABLE

1шт.

4

MT40227120

CLAMP

Battery Hold Incl 7

1шт.

NOT ILLUSTRATED

1шт.

Replaced By 84532645, 84532642, 86512253 & 886505868

1шт.

4

84532645

BRACKET

Battery Hold Incl 7

1шт.

5

84532642

BRACKET

Support

1шт.

6

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

7

MT40239639

WARNING DECAL

Battery

1шт.

8

86512253

BOLT,Hex Flg, M8 x 25mm

1шт.

9

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

3шт.

10

MT40229812

COVER

STARTING MOTOR

1шт.

11

MT40229814

BOLT

STARTING MOTOR

1шт.

12

MT40229813

NUT

STARTING MOTOR

1шт.
