(44.511.02) - FRONT & REAR WHEEL HARDWARE

Запчасти Case IH FARMALL 30B (44.511.02) - FRONT & REAR WHEEL HARDWARE (44) - WHEELS

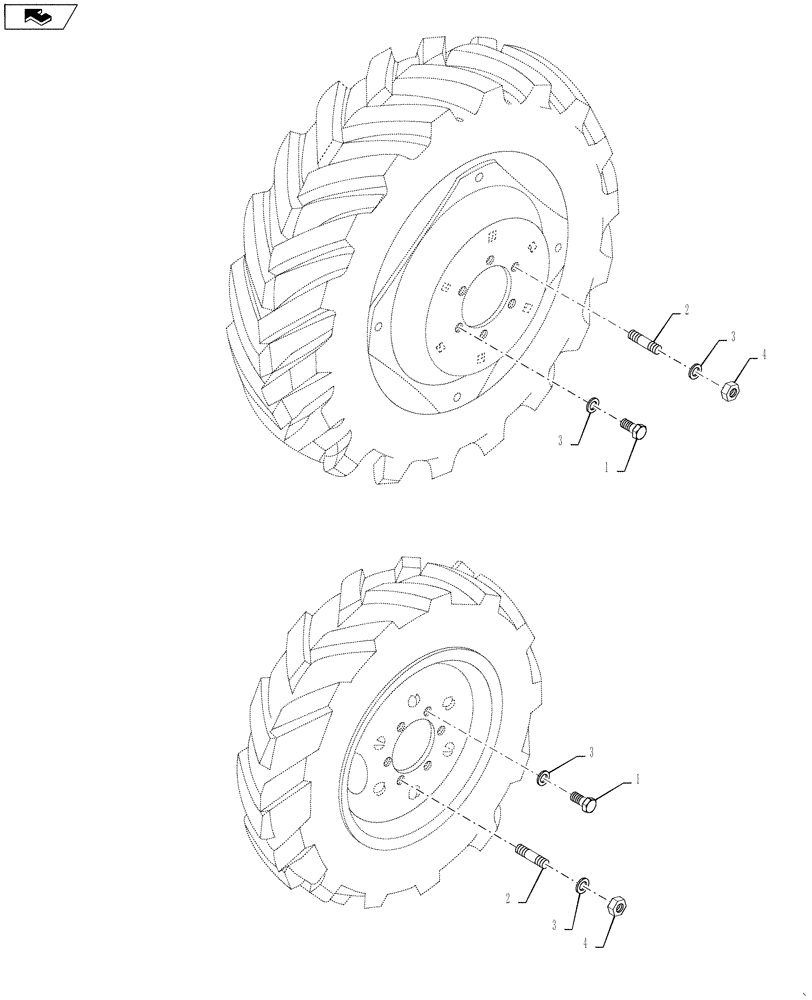

Схема запчастей Case IH FARMALL 30B - (44.511.02) - FRONT & REAR WHEEL HARDWARE (44) - WHEELS
3
2
1
2
3
3
1
home
4
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40029474

BOLT,Hex, M16 x 1.5 x 30mm

Hex, M16 x 1.5 x 30

16шт.

2

MT40029014

BOLT,Stud, M16 x 1.5 x 25mm

Stud, M16 x 1.5 x 25

8шт.

3

MT40029555

WASHER,16.20mm ID x 28mm OD x 4mm Thk

Spring, O.D. 28 x I.D. 16.2 x 4T

24шт.

4

MT40028752

NUT,Hex, M16 x 1.5

Hex, M16 x 1.5

8шт.
