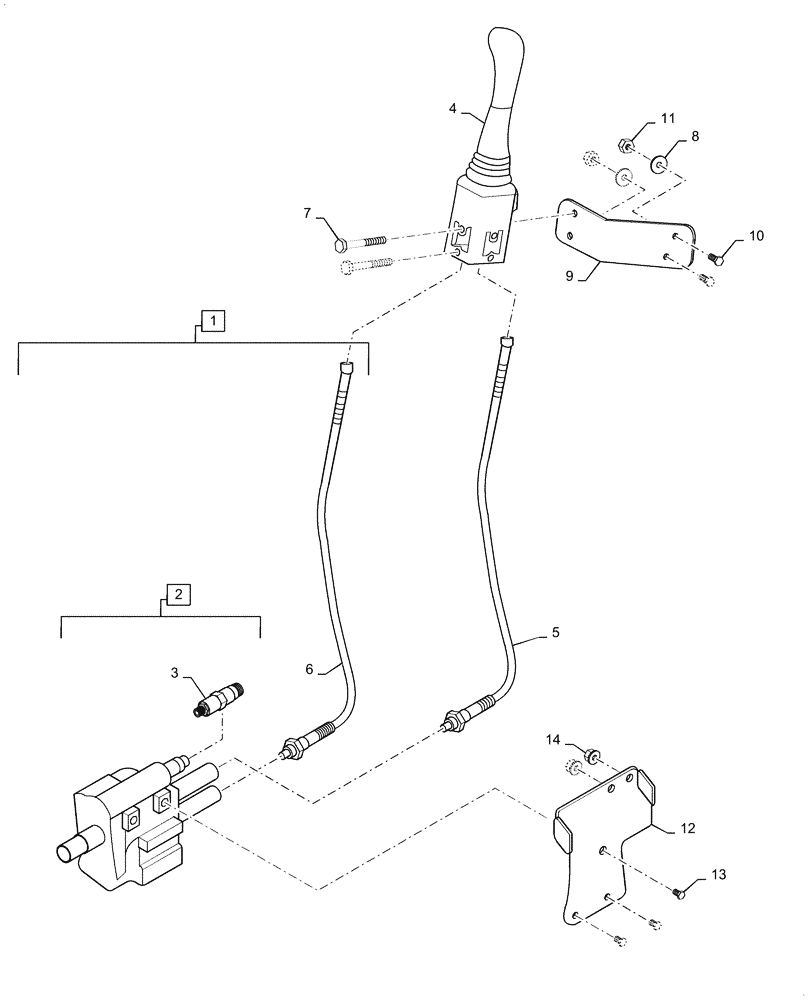

Запчасти Case IH FARMALL 30A (55.035.AG[01]) - JOYSTICK STEERING VALVE (55) - ELECTRICAL SYSTEMS

1

MT40324558

VALVE

Incl 2 - 3, 6

1шт.

2

MT40324582

VALVE

Incl 3

1шт.

3

MT40305657

VALVE

Relief

1шт.

4

MT40236240

LEVER

Joystick

1шт.

5

MT40236241

CABLE

Push/Pull

1шт.

6

MT40304721

CABLE

Bucket

1шт.

7

MT40201015

BOLT,M6 x 1.0mm

2шт.

8

MT40028196

WASHER,8.4mm ID x 26mm OD x 2.5mm Thk

2шт.

9

MT40314720

BRACKET

Joystick

1шт.

10

MT40028923

BOLT,Hex, M8 x 1.25 x 25mm

2шт.

11

MT40029075

FLANGE NUT,Hex, M8 x 1.25

2шт.

12

MT40324554

BRACKET

Loader Valve

1шт.

13

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

14

MT40029079

FLANGE NUT,M10 x 1.25

2шт.
