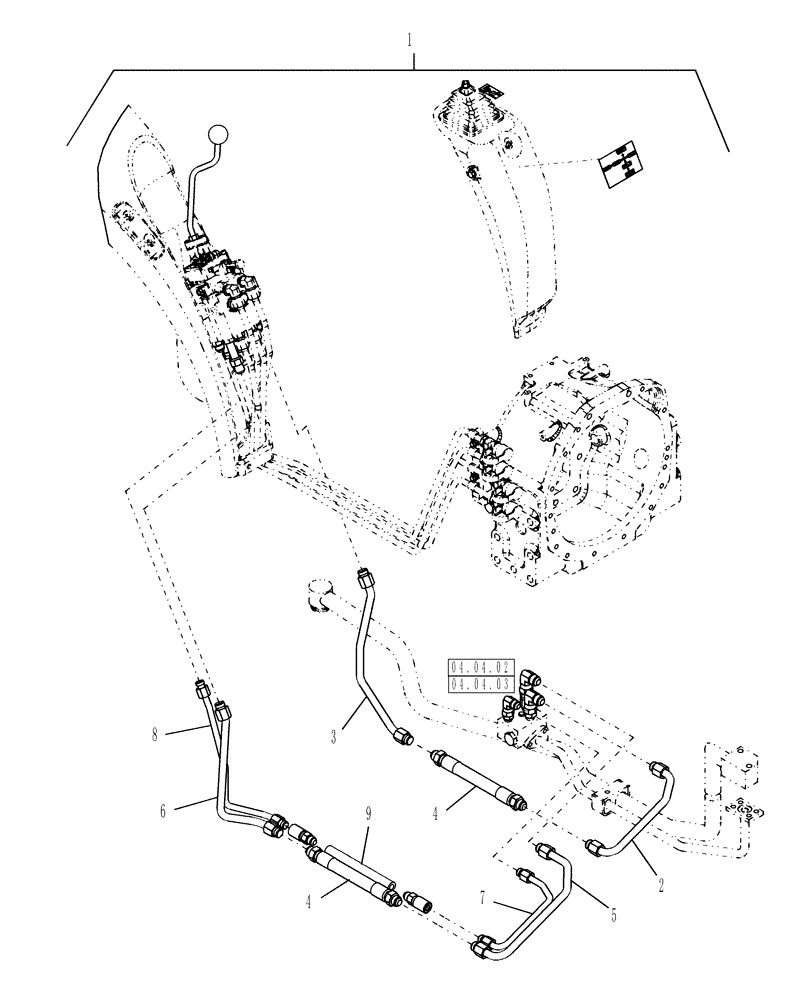

Запчасти Case IH DX60 (07.06.02) - HYDRAULIC LOADER NOISE REDUCTION KIT - 87318975 (07) - HYDRAULIC SYSTEM

1

87318975

KIT

Hydraulic Loader Noise Reduction Includes: Ref. 2-9

1шт.

2

87311141

TUBE,15.90 mm OD

Supply at Diverter

1шт.

3

87311142

TUBE,15.90 mm OD

Supply at Loader Valve

1шт.

4

87311143

HOSE

Supply at PBY Jumper

2шт.

5

87311144

TUBE,15.90 mm OD

Power Beyond, Diverter

1шт.

6

87311145

TUBE,15.90 mm OD

PBY at Loader Valve

1шт.

7

87311147

TUBE,12.70 mm OD

Tank at Diverter

1шт.

8

87311148

TUBE,12.70 mm OD

Tank at Loader Valve

1шт.

9

87311149

HOSE

Tank Jumper

1шт.
