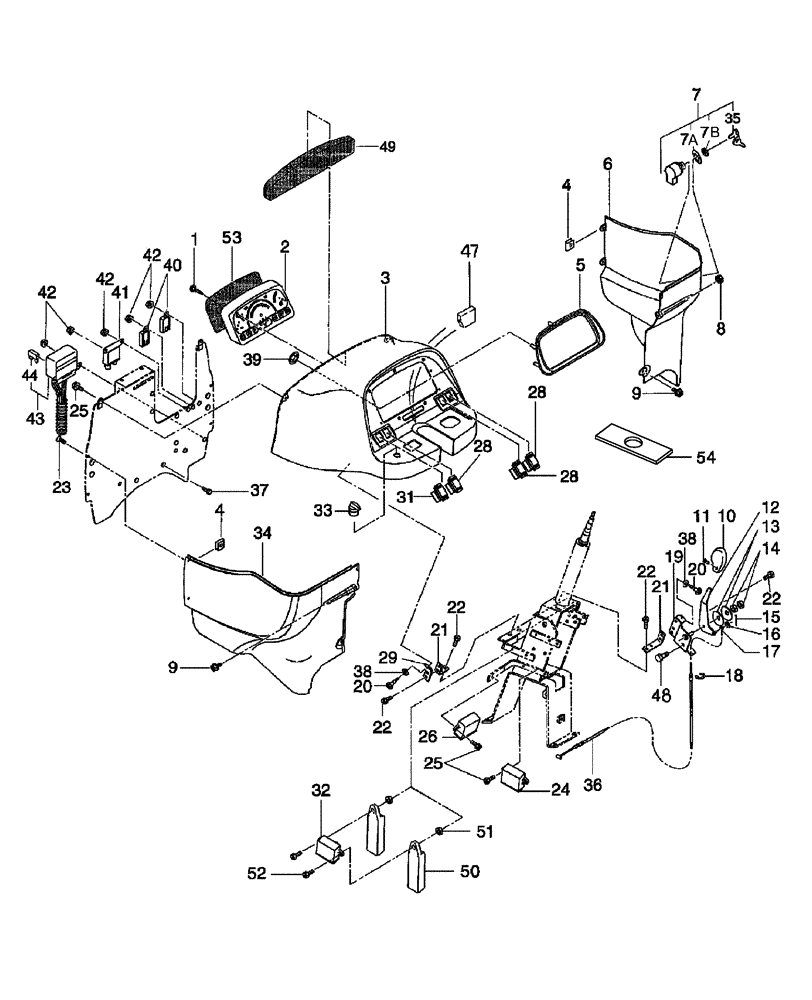

Запчасти Case IH DX60 (06.02) - DASHBOARD, INSTRUMENT PANEL & RELATED PARTS (06) - ELECTRICAL SYSTEMS

1

SBA015600414

SCREW

5шт.

2

SBA385041170

METER

Refer to Fig. 06.02.01

1шт.

3

SBA350711850

INSTRUMENT PANEL

Center

1шт.

4

SBA020109129

NUT

4шт.

5

SBA350711900

BEZEL

1шт.

6

SBA350711890

INSTRUMENT PANEL

RH

1шт.

7

SBA385202591

SWITCH

Ignition Includes: Ref. 7A, 7B & 35

1шт.

7a

SBA385240290

RING NUT

Ring, Nut

1шт.

7b

SBA385240300

WASHER

Washer

1шт.

8

9706755

NUT,M6, Cl 8

1шт.

9

SBA010800620

BOLT

M6 x 20

4шт.

10

SBA398181900

GRIP

1шт.

11

SBA015200408

SCREW

1шт.

12

SBA312101111

LEVER

Accelerator

1шт.

13

SBA398212210

SPRING-DISC

2шт.

14

9706690

NUT,M8 x 1.25, Cl 8

2шт.

15

SBA030102020

COTTER PIN

3шт.

16

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

6шт.

17

SBA312070200

CABLE

Hand Throttle Cable

1шт.

18

SBA036800005

SNAP RING

3шт.

19

SBA312500840

BRACKET

1шт.

20

SBA015600616

SCREW

2шт.

21

SBA350862270

BRACKET

1шт.

22

SBA011150612

BOLT

M6 x 12

8шт.

23

SBA010800620

BOLT

M6 x 20

4шт.

24

SBA385871260

CONTROL UNIT

Safety

1шт.

24

SBA385871261

ECU

Safety

1шт.

USED ON & ABOVE PIN Z7NF1001-DX60 SSS, Z7NFF1010-DX60 EHSS

1шт.

USED ON & ABOVE PIN Z7NF1001-DX55 SSS, Z7NFS1002-DX55 EHSS

1шт.

25

SBA010800612

BOLT

M6 x 12

4шт.

26

SBA385871190

CONTROL BLOCK

1шт.

28

SBA385202540

SWITCH ASSY

3шт.

29

SBA350862291

BRACKET

1шт.

31

SBA385202530

LIGHT SWITCH

1шт.

32

SBA385871280

CONTROL BLOCK

1шт.

33

SBA385200531

FLASHER SWITCH

1шт.

34

SBA350711870

INSTRUMENT PANEL

LH

1шт.

35

SBA385210360

IGNITION KEY

1шт.

36

SBA312070200

CABLE

Hand Throttle Cable

1шт.

37

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

38

SBA026100006

WASHER

M6

8шт.

39

SBA399370550

NUT

Push

6шт.

40

SBA385230300

RELAY

Used for Road Lights,Work Lights & Brake Lights

3шт.

41

SBA385230120

RELAY

Glow Plug

1шт.

42

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

8шт.

43

SBA385612841

WIRE HARNESS

1шт.

44

SBA385410040

FUSE

Fuse 10A

2шт.

44

SBA385410130

FUSE

Fuse 20A

1шт.

44

SBA385410210

FUSE

Fuse 25A

2шт.

47

SBA398135620

PADDING

1шт.

48

SBA010100612

BOLT

M6 x 12

1шт.

49

SBA398135380

FOAM

1шт.

50

SBA385230300

RELAY

Used for Safety Start & Auxiliary Power

2шт.

51

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

52

SBA010800620

BOLT

M6 x 20

2шт.

53

SBA398136170

INSULATOR

Sponge

1шт.

54

SBA398121670

RUBBER

1шт.

55

SBA378460840

COVER PLATE

Dust Control & Water Proof of Wire for Accelerator Lever

1шт.

Not Illustrated

1шт.
