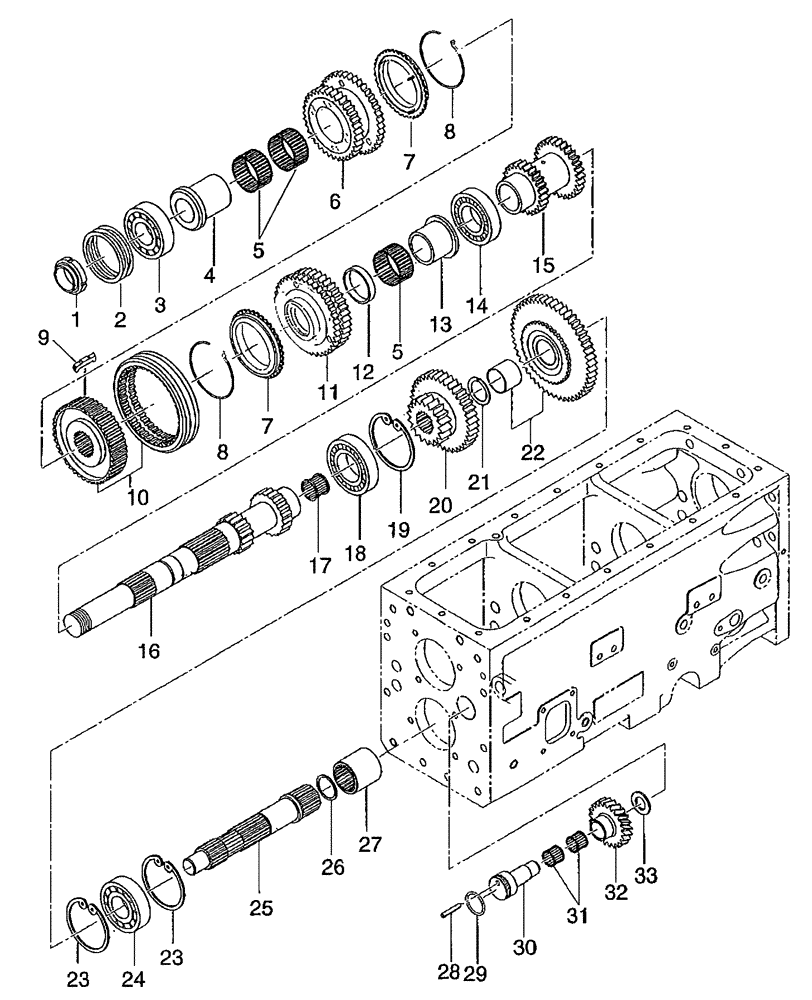

Запчасти Case IH DX60 (03.05.02) - FRONT TRANSMISSION - SSS (03) - TRANSMISSION

1

SBA399370610

NUT

1шт.

2

SBA199280750

SHIM,0.1mm Thk

2шт.

2

SBA199280760

SHIM

.2 or 0.008"

2шт.

2

SBA199280770

SHIM

.5 or 0.020"

2шт.

3

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

4

SBA322613300

COUPLING

1шт.

5

SBA042209006

BEARING ASSY

1шт.

6

SBA322383050

GEAR

Counter, B

1шт.

7

SBA322410110

RING

Gear, Synchronizer

2шт.

8

SBA398215192

RING

Spring

2шт.

9

SBA322420092

KEY

3шт.

10

SBA322031950

GEAR

1шт.

11

SBA322383040

GEAR

Counter B

1шт.

12

SBA399235890

COLLAR

1шт.

13

SBA322613310

COUPLING

1шт.

14

114085

BALL BEARING,39.9999 mm ID x 79.9998 mm OD x 18.001 mm

4шт.

15

SBA322330260

GEAR

Fixing, B

1шт.

16

SBA322531980

COUNTERSHAFT

1шт.

17

SBA042209017

NEEDLE BEARING

1шт.

18

37198

BALL BEARING,1.7717" ID x 3.3465" OD x 0.7487"

1шт.

19

370021

SNAP RING,M85 x 3mm Thk, Internal

1шт.

20

SBA322361490

GEAR

Slide, B

1шт.

21

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

22

SBA322032000

GEAR

1шт.

23

80300633

SNAP RING,M80, Int

1шт.

24

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

25

SBA322521450

MAIN SHAFT

1шт.

26

SBA036500037

SNAP RING

1шт.

27

SBA322613260

COUPLING

1шт.

28

SBA030300625

PIN

Spring

1шт.

29

SBA052300300

O-RING

1шт.

30

SBA322560550

SHAFT

Back Gear

1шт.

31

SBA042209022

NEEDLE

Bearing

2шт.

32

SBA322372200

GEAR

Counter A

1шт.

33

SBA399260620

THRUST WASHER

1шт.
