Запчасти Case IH DX60 (03.05) - FRONT TRANSMISSION - EHSS (03) - TRANSMISSION

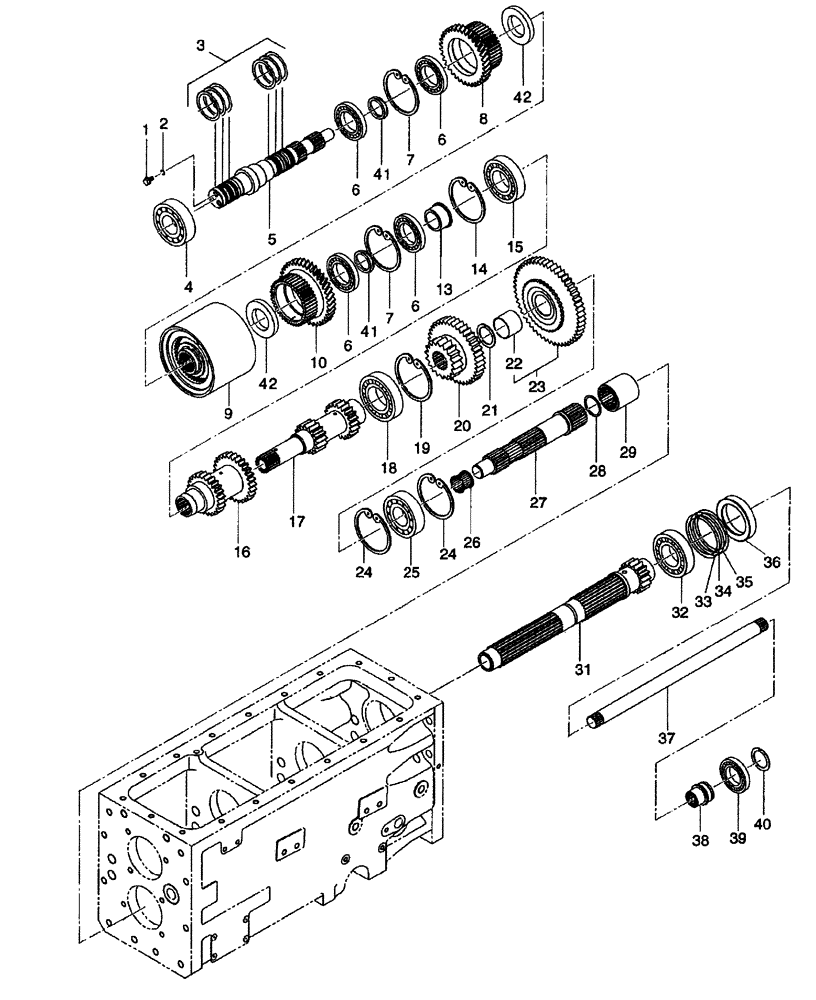

Схема запчастей Case IH DX60 - (03.05) - FRONT TRANSMISSION - EHSS (03) - TRANSMISSION
6
1
31
22
19
6
42
9
23
32
6
38
7
41
2
33
42
40
21
20
5
15
17
28
14
3
10
24
27
16
35
13
7
29
26
8
6
37
25
34
41
36
39
4
24
18

Артикул

Название

Примечание

Количество

1

SBA010800610

SCREW

M6 x 10

2шт.

2

SBA052400080

O-RING

2шт.

3

SBA320670140

SEALING RING

SEALRING

6шт.

4

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

5

SBA322514200

DRIVEN SHAFT

1шт.

6

SBA040109137

BALL BEARING,40mm ID x 68mm OD x 9mm W

4шт.

7

SBA036700068

SNAP RING

2шт.

8

SBA322382881

GEAR

Counter, B

1шт.

9

SBA320041100

CLUTCH

Refer to Fig. 03.05.01 For Components

1шт.

10

SBA322382891

GEAR

Counter, B

1шт.

13

SBA322613240

COUPLING

1шт.

14

300633

SNAP RING,M80, Internal

1шт.

15

114085

BALL BEARING,39.9999 mm ID x 79.9998 mm OD x 18.001 mm

1шт.

16

SBA322330270

GEAR

Fixing, B

1шт.

17

SBA322531990

COUNTERSHAFT

1шт.

18

37198

BALL BEARING,1.7717" ID x 3.3465" OD x 0.7487"

1шт.

19

370021

SNAP RING,M85 x 3mm Thk, Internal

1шт.

20

SBA322361490

GEAR

Slide, B

1шт.

21

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

22

SBA398510670

DRIVE BUSHING

1шт.

23

SBA322032000

GEAR

Counter, B

1шт.

24

300633

SNAP RING,M80, Internal

1шт.

25

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

26

SBA042209017

NEEDLE BEARING

1шт.

27

SBA322521450

MAIN SHAFT

1шт.

28

SBA036500037

SNAP RING

1шт.

29

SBA322613260

COUPLING

1шт.

31

SBA322531870

COUNTERSHAFT

1шт.

32

114085

BALL BEARING,39.9999 mm ID x 79.9998 mm OD x 18.001 mm

.

1шт.

33

SBA199280750

SHIM,0.1mm Thk

1шт.

34

SBA199280760

SHIM

.2 or 0.008"

1шт.

35

SBA199280770

SHIM

.5 or 0.020"

1шт.

36

SBA320190660

HOLDER

1шт.

37

SBA322514190

DRIVEN SHAFT

1шт.

38

SBA322613230

COUPLING

1шт.

39

SBA040109052

BALL BEARING,35mm ID x 62mm OD x 9mm W

1шт.

40

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

41

SBA399212190

WASHER

Spacer

2шт.

42

SBA320670150

RING

Seal

2шт.

Выбрано товаров: 39
