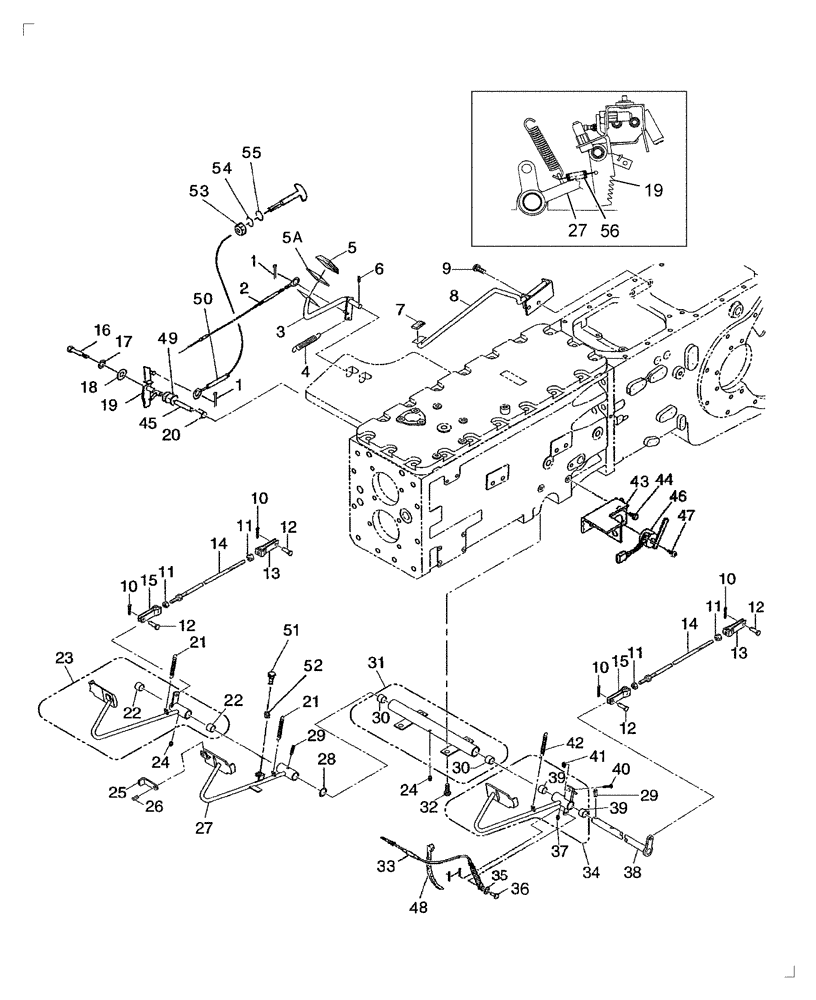

Запчасти Case IH DX60 (03.01) - PEDAL & BRAKE LOCK - EHSS (03) - TRANSMISSION

1

SBA030102020

COTTER PIN

2шт.

2

SBA312070760

WIRE

Foot Throttle Cable

1шт.

3

SBA312600540

PEDAL

Accelerator

1шт.

4

SBA398211830

SPRING

1шт.

5

SBA398119901

RUBBER PEDAL PAD

Replaced by SBA398119902 Rubber Pedal & SBA398122990 Rubber

1шт.

5

SBA398119902

RUBBER PEDAL PAD

Rubber, Pedal

1шт.

5a

SBA398122990

RUBBER PAD

Rubber

1шт.

Not Illustrated

1шт.

Fits Between Ref. 3 & 5

1шт.

6

SBA030102520

COTTER PIN

1шт.

7

SBA398114050

COVER

1шт.

8

SBA326501280

PEDAL

Difflock

1шт.

9

SBA011511020

BOLT,M10 x 20

2шт.

10

SBA030103225

COTTER PIN,M3 x 25 L

4шт.

11

100016

NUT,M10 x 1.5, Cl 8

2шт.

12

SBA031311020

PIN

4шт.

13

SBA358550100

CLEVIS

Fork Joint

2шт.

14

SBA358510740

ROD

2шт.

15

SBA358550110

CLEVIS

Fork Joint

2шт.

16

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

1шт.

17

892-11010

LOCK WASHER,M10

1шт.

18

SBA026109023

WASHER

1шт.

19

SBA358300802

LOCK

Brake

1шт.

20

SBA398212640

SPRING

1шт.

21

SBA398210290

SPRING

2шт.

22

SBA398511460

DRIVE BUSHING

1шт.

23

SBA358012330

PEDAL ASSY.

R

1шт.

24

SBA060610000

LUBE NIPPLE,M6 x .075

2шт.

25

SBA399581460

LEVER

1шт.

26

SBA030300822

PIN

Spring

1шт.

27

SBA358105560

PEDAL

L

1шт.

28

SBA199280490

SHIM,0.5mm Thk

(.020")

1шт.

29

SBA030300840

ROLL PIN

2шт.

30

SBA398511460

DRIVE BUSHING

2шт.

31

SBA358020740

SUPPORT ASSY.

1шт.

32

SBA011511025

CAPTIVE WASHER SCREW,Hex, M10 x 25, G5

4шт.

33

SBA312070751

WIRE

1шт.

34

SBA358012340

PEDAL ASSY.

1шт.

35

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

1шт.

36

SBA031310615

PIN

1шт.

37

SBA060610000

LUBE NIPPLE,M6 x .075

1шт.

38

SBA358200960

SHAFT

Pedal

1шт.

39

SBA398511460

DRIVE BUSHING

2шт.

40

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

41

100016

NUT,M10 x 1.5, Cl 8

1шт.

42

SBA398215911

SPRING

Clutch Pedal Return. New larger spring is the correct, due to a design change.

1шт.

43

SBA385953570

BRACKET

1шт.

44

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

45

SBA399233220

COLLAR

1шт.

46

SBA385880300

POTENTIOMETER

1шт.

47

SBA015150412

SCREW

2шт.

48

SBA398750220

CABLE TIE

CABLE STRAP

1шт.

49

SBA398216200

SPRING

1шт.

50

SBA312070840

CABLE

1шт.

51

SBA010310825

BOLT

M8 x 25

1шт.

52

SBA020900008

NUT

M8

1шт.

53

SBA020800014

NUT,M14 x 1.5

2шт.

54

SBA027100014

SPRING

M14

1шт.

55

SBA026100014

WASHER

M14

2шт.

56

SBA398216251

SPRING

Spring

1шт.
