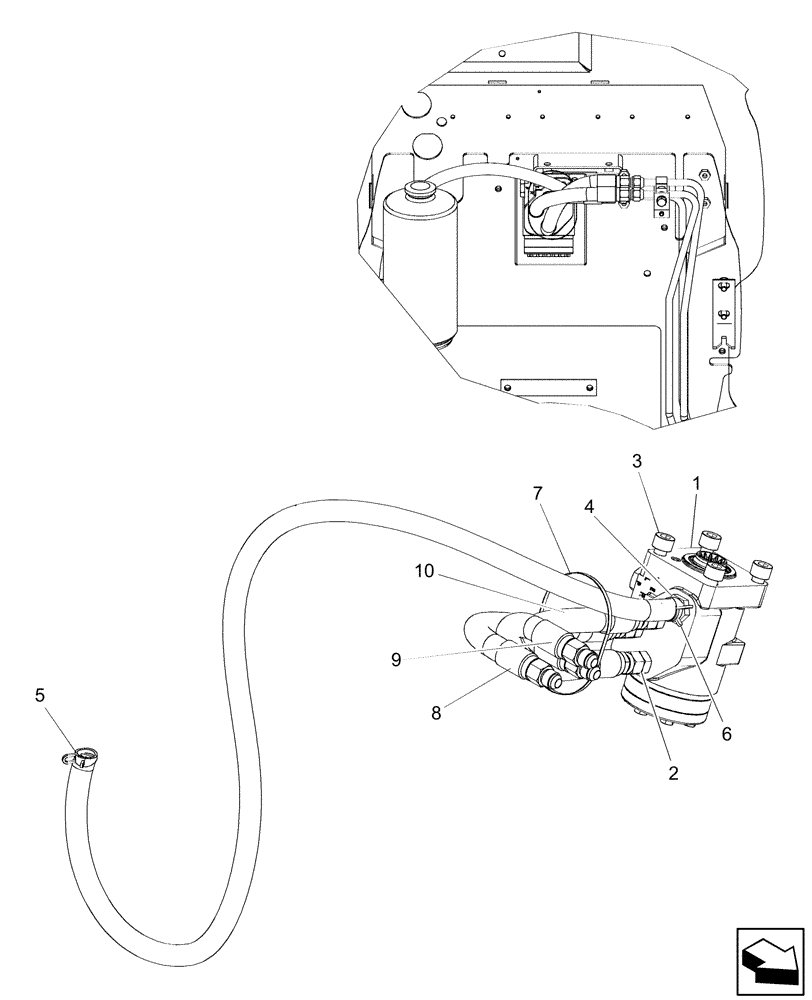

Запчасти Case IH DX60 (10.14.01) - STEERING LINES (10) - OPERATORS PLATFORM/CAB

1

86402721

HYDRAULIC STEERING

Pump, 74CC 140 Bar

1шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

3шт.

3

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

4шт.

4

87360975

HYD CONNECTOR,3/8" Barb x 9/16"-18 x 2 3/16" L

1шт.

5

87632924

HOSE,9.50 mm ID x 203.00 mm, SAE 30R7

Steering Return

1шт.

6

86400352

CLAMP

Hose

2шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

8

87676554

HOSE,10.00 mm ID, SAE 100R17 Class 25

Left "L"

1шт.

9

87676555

HOSE,10.00 mm ID, SAE 100R17 Class 25

Right "R"

1шт.

10

87676556

HOSE,10.00 mm ID, SAE 100R17 Class 25

Pressure "P"

1шт.
