(10.11) - CONSOLE & DECALS

Запчасти Case IH DX60 (10.11) - CONSOLE & DECALS (10) - OPERATORS PLATFORM/CAB

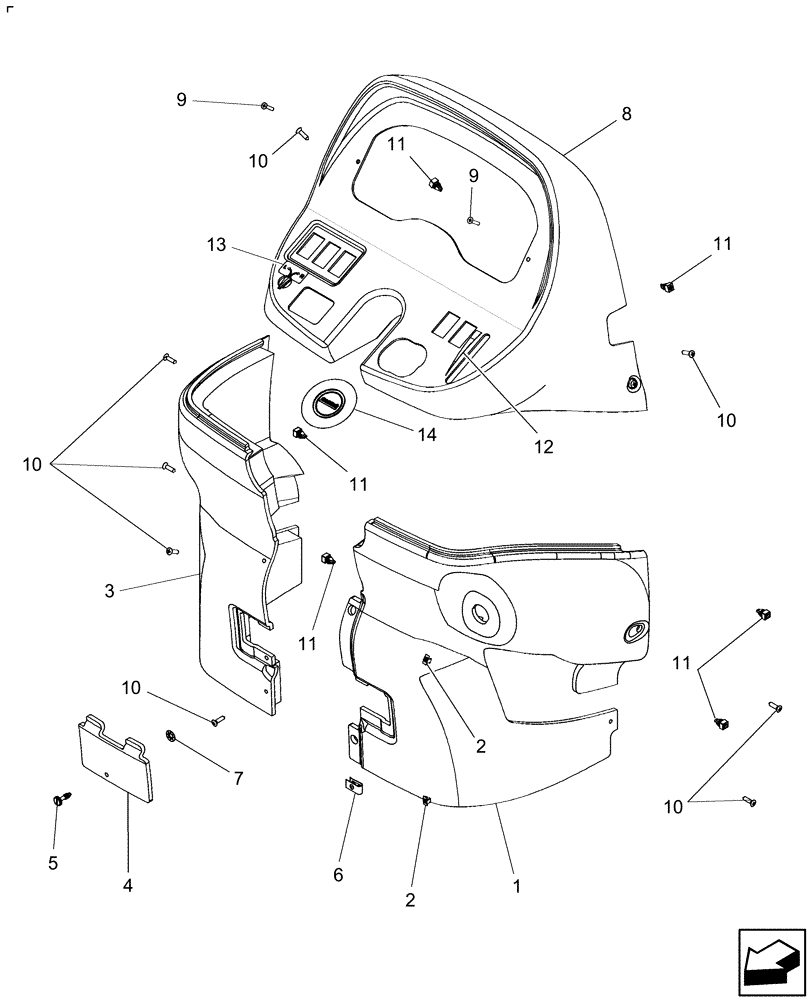

Схема запчастей Case IH DX60 - (10.11) - CONSOLE & DECALS (10) - OPERATORS PLATFORM/CAB
10
5
12
9
2
9
11
2
10
13
14
8
11
11
6
10
4
11
3
1
10
7
10
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87615431

CONSOLE

Panel, Lower RH Refer to Fig. 10.11.01 for Console Panel & Foam

1шт.

Supersedes to Console Panel & Foam

1шт.

2

87615567

NUT

#10

2шт.

3

87641143

CONSOLE

Panel, Lower LH Refer to Fig. 10.11.01 for Console Panel & Foam

1шт.

Supersedes to Console Panel & Foam

1шт.

4

87634833

DOOR

CONSOLE, FUSE

1шт.

5

87644760

FASTENER

SCREW, CAB CONSOLE FUSE DOOR

1шт.

6

87644761

CLIP

CAB CONSOLE FUSE DOOR RETAINING

1шт.

7

87644762

LOCK WASHER

CAB CONSOLE FUSE DOOR

1шт.

8

87614004

CONSOLE

PANEL, FRONT TOP COVER

1шт.

9

86555127

SCREW,M4 x 0.7 x 23.25mm OAL, Cl 4.8, Cntr Sunk

2шт.

10

86625205

SELF-TAP SCREW

8шт.

11

86404659

GROMMET

6шт.

12

81863547

DECAL

Throttle, Hand

1шт.

13

87656855

DECAL

Turn Signal

1шт.

14

86401707

EMBLEM

Logo, CASE IH Steering Wheel Button

1шт.
