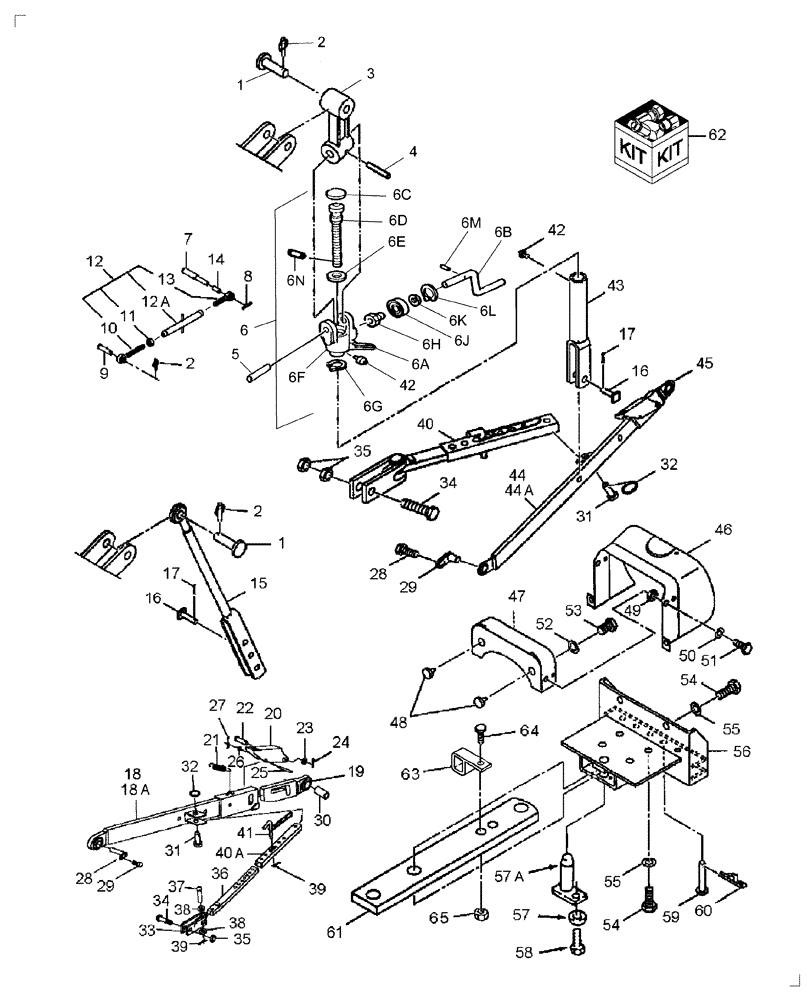

Запчасти Case IH DX60 (09.01) - 3PT HITCH & REAR COUNTERWEIGHT BRACKET (09) - IMPLEMENT LIFT

1

SBA370910310

PIN

2шт.

2

SBA370900030

PIN

3шт.

3

SBA370240131

FLEXIBLE JOINT

1шт.

4

412660

PIN,6mm OD x 45mm L, Slotted

Spring

1шт.

5

SBA370910531

PIN

1шт.

6

SBA370011710

LIFTING ROD

RH

1шт.

6a

SBA398211971

SPRING

Crank Locking

1шт.

6b

SBA370820171

HANDLE

Crank

1шт.

6c

SBA064100050

PLUG

Expansion

1шт.

6d

SBA370202870

ROD

Lift

1шт.

6e

SBA398560730

BEARING ASSY

Thrust

1шт.

6f

NSS

NOT SOLD SEPARAT

Joint

1шт.

6g

SBA036100030

SNAP RING

M30

1шт.

6h

SBA370810090

BEVEL GEAR

1шт.

6j

SBA040136004

BEARING ASSY

1шт.

6k

SBA036100020

SNAP RING

M20

1шт.

6l

SBA036500042

SNAP RING

M42

1шт.

6m

SBA030300518

PIN

Spring

1шт.

6n

SBA030300325

COTTER PIN

1шт.

7

SBA370910550

PIN

1шт.

8

SBA399730010

PIN

1шт.

9

SBA370911000

PIN

1шт.

10

SBA370201722

LIFTING ROD

RH

1шт.

11

SBA399350130

LOCK NUT

1шт.

12

SBA370011660

LIFTING ROD

Top Link Includes: Ref. 10 thru 13

1шт.

12a

SBA370400430

TURNBUCKLE

1шт.

13

SBA370202690

LIFTING ROD

LH

1шт.

14

SBA399235820

COLLAR

2шт.

15

SBA370202860

LIFTING ROD

1шт.

16

SBA370911360

PIN

2шт.

17

SBA030109001

SPLIT PIN

2шт.

18

SBA370040280

LIFT LINK

Lower Ref. 18A thru 27

1шт.

18a

SBA370101910

LIFT LINK

Lower, LH

1шт.

19

SBA370101970

LIFT LINK

Lower, LH Flexible Link End

1шт.

20

SBA370770121

PLATE

2шт.

21

SBA398211960

SPRING

2шт.

22

SBA370910511

PIN

2шт.

24

SBA030105032

PIN

2шт.

25

SBA031311045

PIN

M10 x 45

2шт.

26

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

27

SBA030103220

COTTER PIN

2шт.

28

SBA011511025

CAPTIVE WASHER SCREW,Hex, M10 x 25, G5

2шт.

29

SBA370900450

PIN

2шт.

30

SBA399235940

COLLAR

2шт.

31

SBA399612140

PIN

PIN

2шт.

32

SBA398214870

SPRING

2шт.

33

SBA370510190

STABILIZER

Clevis

2шт.

34

SBA010239002

BOLT

2шт.

35

SBA021000012

NUT

M12

2шт.

36

SBA370501150

STABILIZER

Male

2шт.

37

SBA031311255

PIN

2шт.

38

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

39

SBA030103220

COTTER PIN

3 x 20

4шт.

40

0C

ORDER COMPONENTS

Stabilizer Includes: Ref. 33,36,37,38,39,40A & 41

1шт.

SBA370050370

1шт.

40a

SBA370501160

STABILIZER

Female

1шт.

41

SBA370501170

STABILIZER

Pin

1шт.

42

SBA060630000

LUBE NIPPLE

2шт.

43

SBA370202890

LIFTING ROD

1шт.

44

SBA370040290

LIFT LINK

Lower, RH Includes: Ref. 20 thru 27 & 30, 44A & 45

1шт.

44a

SBA370101930

LIFT LINK

Lower, RH

1шт.

45

SBA370101950

LIFT LINK

Lower, RH Flexible Link End

1шт.

46

SBA378107160

GUARD

PTO

1шт.

47

SBA378121270

BRACKET

Stay

1шт.

48

SBA398110110

BUMPER

Rubber

2шт.

49

9706690

NUT,M8 x 1.25, Cl 8

2шт.

51

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

52

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

53

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

54

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

6шт.

55

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

56

SBA370651810

HITCH

1шт.

57

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

57a

SBA370901130

PIN

1шт.

58

SBA011511016

BOLT

M10 x 16

1шт.

59

SBA370911340

PIN

2шт.

60

SBA031100016

PIN

2шт.

61

SBA370710581

DRAWBAR

1шт.

62

86402517

KIT

Rear Counter Weight Bracket (718740016)

1шт.

63

1973937C3

SUPPORT

Safety Chain

1шт.

64

120092

BOLT,M16 x 70mm, Cl 8.8

1шт.

65

86512555

NUT,M16 x 2, Cl 10

1шт.
