Запчасти Case IH DX60 (06.01) - ELECTRICAL (06) - ELECTRICAL SYSTEMS

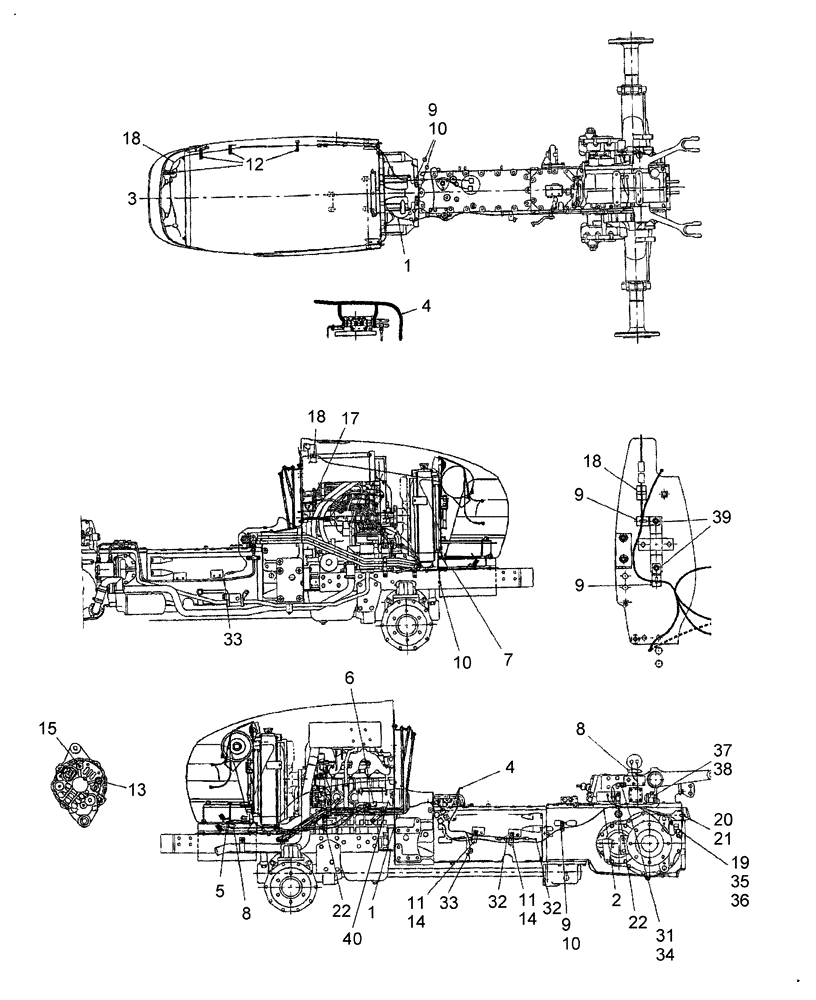

Схема запчастей Case IH DX60 - (06.01) - ELECTRICAL (06) - ELECTRICAL SYSTEMS
34
8
37
10
6
10
5
19
18
9
11
31
2
38
35
7
18
9
14
1
4
4
22
32
8
18
9
14
22
1
17
39
33
10
36
9
20
32
12
11
40
13
33
15
21
3

Артикул

Название

Примечание

Количество

1

SBA385613001

WIRE HARNESS

Main

1шт.

2

SBA385613010

WIRE HARNESS

Rear

1шт.

3

SBA385612091

WIRE HARNESS

Headlight

1шт.

4

SBA385613020

WIRE HARNESS

EHSS

1шт.

4

SBA385613030

WIRE HARNESS

SSS

1шт.

4a

87685878

WIRE HARNESS

PANEL, EHSS Includes Relay Block

1шт.

Superseded to 84223202

1шт.

4a

84223202

HARNESS

HARNESS, PANEL, EHSS Includes Relay Block

1шт.

Contains Inline Diode in Panel Harness

1шт.

4a

87685877

WIRE HARNESS

HARNESS, PANEL, SSS Includes Relay Block

1шт.

Superseded to 84223204

1шт.

4a

84223204

HARNESS

HARNESS, PANEL, SSS Includes Relay Block

1шт.

Contains Inline Diode in Panel Harness

1шт.

5

SBA385650800

CABLE

Battery

1шт.

6

SBA398119870

RUBBER PAD

1шт.

7

SBA385650450

CABLE

Battery

1шт.

8

SBA398750220

CABLE TIE

CABLE STRAP

6шт.

9

SBA399113340

WIRE CLAMP

3шт.

10

SBA010800812

BOLT

M8 x 12

1шт.

11

SBA399113650

CLAMP

2шт.

12

SBA399111960

CLAMP

4шт.

15

SBA015150510

SCREW

1шт.

17

SBA185606170

WIRE HARNESS

1шт.

18

SBA399112851

CLAMP

4шт.

19

SBA355210370

PLATE

1шт.

20

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

2шт.

21

SBA026100008

WASHER

2шт.

22

SBA399110340

CLAMP

2шт.

23

SBA385613040

WIRE HARNESS

1шт.

31

SBA385201260

SWITCH

Safety

1шт.

31

SBA385871261

ECU

Safety

1шт.

USED ON & ABOVE PIN Z7NFE1001-DX60 SSS, Z7NFF1001-DX60 EHSS

1шт.

32

SBA385202640

SWITCH

Rear PTO Safety, EHSS

1шт.

33

SBA385202630

SWITCH

Parking Brake

1шт.

34

SBA020210014

NUT

M14

1шт.

35

SBA010800612

BOLT

M6 x 12

1шт.

36

SBA023100006

NUT

M6

1шт.

37

SBA385250180

BUZZER

1шт.

38

SBA010800816

BOLT

M8 x 16

1шт.

39

SBA021500008

NUT,M8

2шт.

40

SBA385608910

FUSE

Link, Located at the Starter.

1шт.

41

SBA385620310

DIODE

Located Near Starter, Used For The Alternator Charging Indicator Light

1шт.

Not Illustrated

1шт.

42

279265A2

SWITCH

Brake Light

1шт.

Not Illustrated

1шт.

Выбрано товаров: 45
