Запчасти Case IH DX55 (04.07) - FINAL REDUCTION GEARS, W/FWD (04) - FRONT AXLE & STEERING

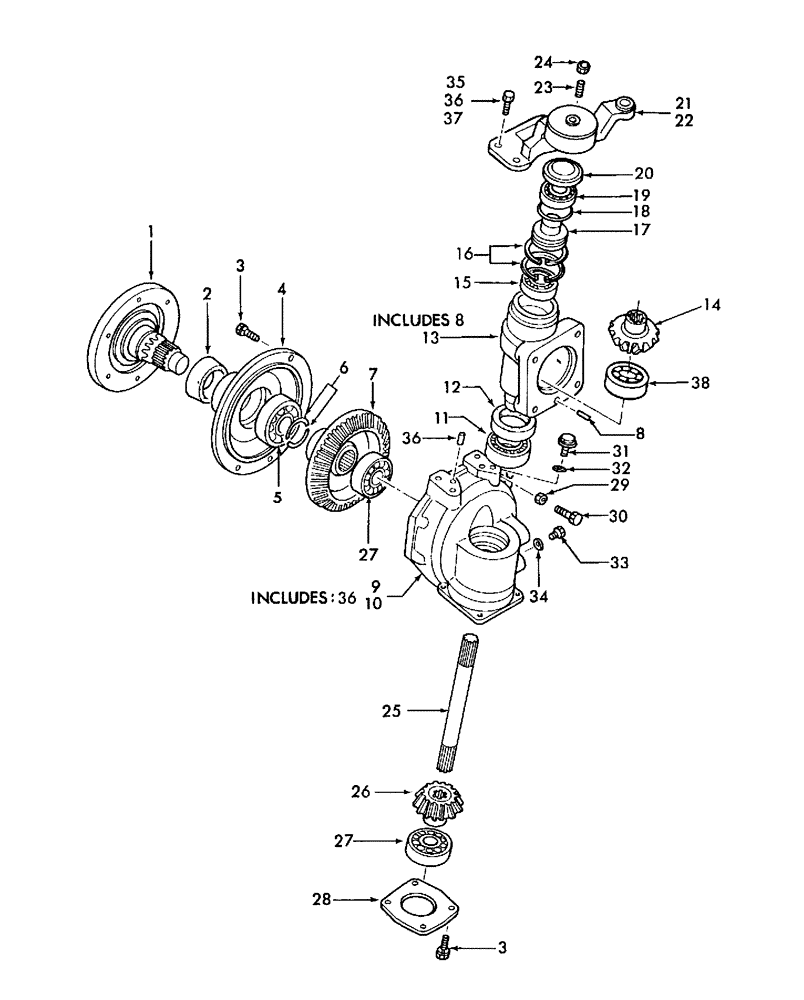

Схема запчастей Case IH DX55 - (04.07) - FINAL REDUCTION GEARS, W/FWD (04) - FRONT AXLE & STEERING
27
7
8
34
21
13
24
26
6
3
25
30
31
32
12
38
3
37
15
9
35
27
5
2
18
36
16
4
22
11
23
33
19
1
29
14
17
10
28
20
36

Артикул

Название

Примечание

Количество

1

SBA326312511

WHEEL SHAFT

2шт.

2

SBA399030090

SEAL KIT

Oil

2шт.

3

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

28шт.

4

SBA322213810

COVER

2шт.

5

SBA040306310

RING

Ball Bearing

1шт.

6

SBA398340320

CLIP

4шт.

7

SBA326370520

GEAR

Final

2шт.

8

SBA030501032

PIN

Dowel

2шт.

9

SBA322018030

CASING

L.H. Includes: Ref. 36

1шт.

10

SBA322018040

CASING

R.H. Includes: Ref. 36

1шт.

11

SBA042532009

BEARING ASSY,45mm ID x 100mm OD x 38.25mm W

2шт.

12

SBA050609051

SEAL

Oil

2шт.

13

SBA322015711

CASE ASSY.

2шт.

13

SBA322015712

CASING

2шт.

USED ON & ABOVE PIN # HDG600724

1шт.

14

SBA326240730

PINION

4шт.

15

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

2шт.

16

300633

SNAP RING,M80, Internal

Int, M72

4шт.

USED BELOW PIN # HDG600724

1шт.

17

SBA330311430

PIN

King

2шт.

18

SBA052300750

O-RING

2шт.

19

SBA040116208

BALL BEARING,40mm ID x 80mm OD x 18mm W

2шт.

20

SBA399211560

SPACER

2шт.

21

SBA334525270

ARM

L.H.

1шт.

22

SBA334525280

ARM

R.H.

1шт.

23

SBA399480281

SCREW

2шт.

24

SBA024600010

NUT

2шт.

25

SBA322514230

DRIVEN SHAFT

2шт.

26

SBA326240740

PINION

2шт.

27

SBA040106308

BEARING ASSY

Ball

1шт.

28

SBA322212230

COVER

2шт.

29

9706685

NUT,M12 x 1.75, Cl 8

2шт.

30

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

31

SBA064600016

PLUG

M16

2шт.

32

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

Seal

2шт.

33

SBA010411212

DRAIN PLUG,M12 x 1.25

2шт.

34

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

Seal

3шт.

35

SBA011511235

BOLT,M12 x 35

LH

12шт.

36

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

4шт.

37

SBA010109368

BOLT

R.H.

4шт.

38

SBA040109071

BALL BEARING,32mm ID x 58mm OD x 13mm W

2шт.

Выбрано товаров: 41
