Запчасти Case IH DX55 (04.01) - FRONT AXLE & STEERING W/2WD (04) - FRONT AXLE & STEERING

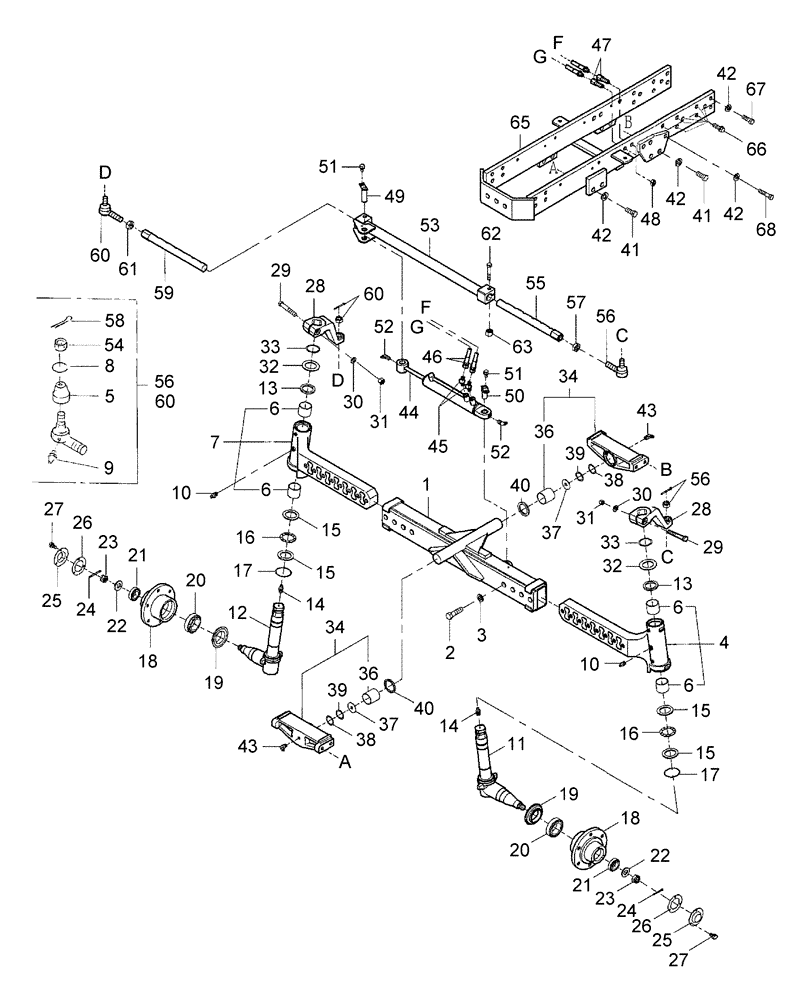

Схема запчастей Case IH DX55 - (04.01) - FRONT AXLE & STEERING W/2WD (04) - FRONT AXLE & STEERING
22
46
50
6
62
63
28
68
21
42
25
17
57
27
47
40
1
39
11
49
37
58
60
23
10
40
5
60
16
24
56
7
43
26
27
52
24
18
2
30
42
3
10
56
6
20
67
18
23
14
13
4
12
42
29
37
39
19
52
42
29
44
34
34
15
30
51
45
60
21
53
41
14
48
17
59
6
26
33
61
6
20
15
36
28
15
25
55
16
22
36
31
51
31
38
9
66
15
8
32
13
32
19
41
65
54

Артикул

Название

Примечание

Количество

1

SBA330201440

SPINDLE

Front Axle Shaft

1шт.

2

SBA010211865

BOLT

6шт.

3

SBA027100018

WASHER

Spring

6шт.

4

SBA330021620

SPINDLE

Axle Shaft

1шт.

5

SBA334810050

CUP

Rubber Boot

2шт.

6

SBA398512100

DRIVE BUSHING

2шт.

7

SBA330021630

SPINDLE

Axle Shaft

1шт.

8

SBA344810203

O-RING

Band

2шт.

8

SBA036100055

SNAP RING

2шт.

USED ON & ABOVE PIN # HDG600268

1шт.

9

SBA060610000

LUBE NIPPLE,M6 x .075

2шт.

10

SBA060620000

LUBE NIPPLE

Grease

2шт.

11

SBA330302620

PIN

King

1шт.

12

SBA330302640

PIN

King

1шт.

13

SBA050301145

SEAL

Oil

2шт.

14

SBA060620000

LUBE NIPPLE

Grease

2шт.

15

SBA399261960

THRUST WASHER

4шт.

16

SBA398566530

THRUST BEARING

Bearing

2шт.

17

SBA052300600

O-RING,G60

2шт.

18

SBA330460830

HUB

Front Wheel

2шт.

19

SBA050609013

SEAL

Oil

2шт.

20

SBA042532010

BEARING ASSY

Taper Roller

2шт.

21

SBA042532006

BEARING ASSY,30mm ID x 55mm OD x 17mm W

Taper Roller

2шт.

22

SBA399211190

SPACER

2шт.

23

SBA020109084

NUT

2шт.

24

SBA030104040

COTTER PIN

2шт.

25

SBA330380110

NUT

Wheel Cap

2шт.

26

SBA330990011

GASKET

2шт.

27

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

6шт.

28

SBA334525300

ARM

2шт.

29

SBA010111485

BOLT

2шт.

30

SBA027100014

SPRING

Washer

2шт.

31

SBA020900014

NUT

M14

2шт.

32

SBA399212200

SPACER

2шт.

33

SBA199280610

SHIM,0.2mm Thk

2шт.

34

SBA322018060

CASING

2шт.

36

SBA398510490

BUSHING

2шт.

37

SBA399260410

THRUST WASHER

2шт.

38

SBA199280510

SHIM,0.2mm Thk

1шт.

39

SBA199280520

SHIM,0.5mm Thk

1шт.

40

SBA050301145

SEAL

Oil

2шт.

41

SBA010311640

BOLT

8шт.

42

SBA027100016

WASHER

M16

14шт.

43

SBA060630000

LUBE NIPPLE

Grease

2шт.

44

SBA344953240

CYLINDER ASSY.

1шт.

45

SBA340670290

ADAPTER

2шт.

46

SBA340690040

FLEXIBLE HOSE

2шт.

47

SBA340671381

ADAPTER

2шт.

48

SBA020800014

NUT,M14 x 1.5

2шт.

49

SBA399600090

PIN

1шт.

50

SBA399600080

PIN

1шт.

51

SBA011510812

CAPTIVE WASHER SCREW,Hex, M8 x 12, G5

2шт.

52

SBA060630000

LUBE NIPPLE

Grease

2шт.

53

SBA334704260

DRAG LINK

1шт.

54

SBA334810060

NUT

1шт.

55

SBA334704281

DRAG LINK

1шт.

56

SBA334800600

TIE-ROD

End, LH

1шт.

56

SBA334800610

TIE-ROD

End, LH

1шт.

USED ON & ABOVE PIN # HDG600268

1шт.

57

SBA020109042

NUT

1шт.

58

SBA030104030

COTTER PIN

2шт.

59

SBA334704301

DRAG LINK

1шт.

60

SBA334800610

TIE-ROD

End, RH

1шт.

60

SBA334800611

TIE-ROD

TIE ROD End, RH

1шт.

USED ON & ABOVE PIN # HDG600268

1шт.

61

SBA020400020

NUT

M20

1шт.

62

SBA010231270

BOLT

2шт.

63

SBA022409010

NUT

2шт.

65

SBA330105640

FRAME

Front Axle Support

1шт.

65

SBA330105750

FRAME

FRONT AXLE SUPPORT

1шт.

USED ON & ABOVE PIN # HDG600483

1шт.

66

SBA010109305

BOLT

M14 x 1.5 x 45

14шт.

67

SBA010109552

BOLT

4шт.

68

SBA010431460

BOLT

2шт.

69

SBA027100014

SPRING

Washer

6шт.

Выбрано товаров: 75
