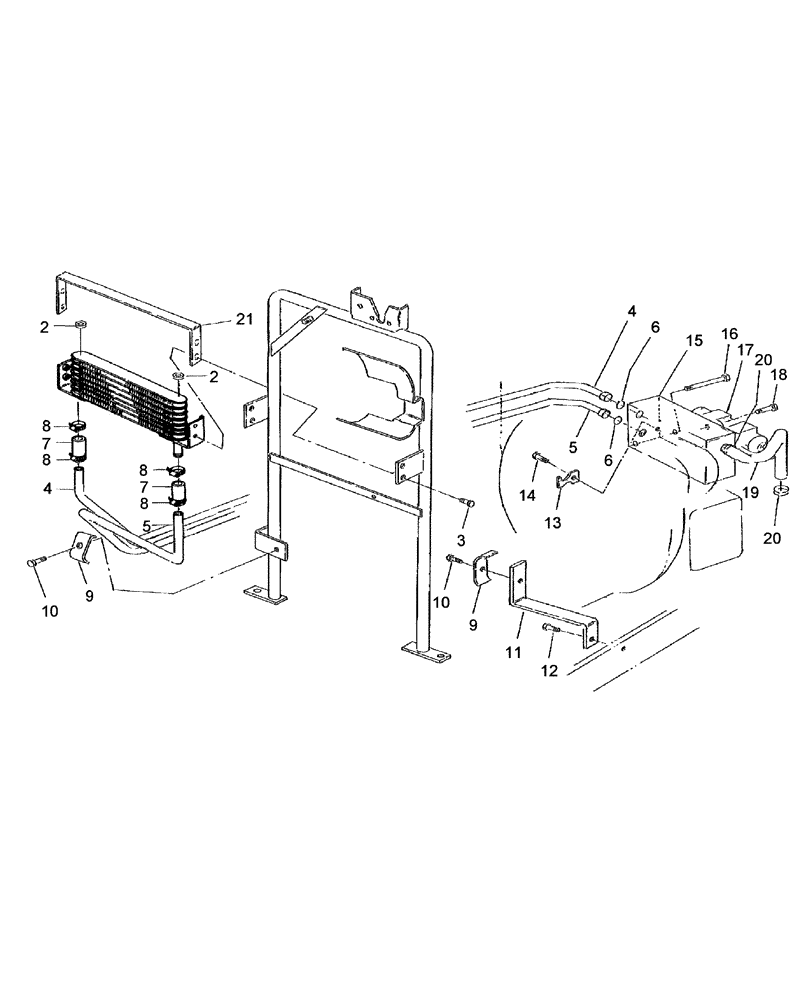

Запчасти Case IH DX55 (02.06) - OIL COOLER (02) - ENGINE EQUIPMENT

1

SBA386050430

OIL COOLER

1шт.

2

SBA398115160

ISOLATOR

2шт.

3

SBA011510816

BOLT

M8 x 16

4шт.

4

SBA340709670

PIPE

Oil

1шт.

4

SBA340709671

PIPE

Oil

1шт.

USED ON & ABOVE PIN # CX10004

1шт.

5

SBA340709790

PIPE

1шт.

6

SBA052100140

O-RING

2шт.

7

SBA340692980

HOSE

Oil

2шт.

8

SBA398756260

BAND

4шт.

9

SBA399113480

CLAMP

2шт.

10

SBA344912840

BRACKET

2шт.

11

SBA344912840

BRACKET

1шт.

12

SBA011510816

BOLT

M8 x 16

1шт.

13

SBA340820540

PLATE

1шт.

14

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

1шт.

15

SBA340016431

VALVE

Control EHSS Refer to Fig. 07.04.02 for Breakdown

1шт.

16

SBA011510860

CAPTIVE WASHER SCREW,Hex, M8 x 60, G5

2шт.

17

SBA340014980

HYDRAULIC VALVE

1шт.

18

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

3шт.

19

SBA340692970

HOSE

Oil

1шт.

20

SBA398756260

BAND

2шт.

21

SBA344912850

BRACKET

1шт.
